Engine Rear Cover: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent engine damage, replace damaged or missing dowel pins before installing the engine rear cover.

Using a new gasket, install the engine rear cover and the 10 bolts. Tighten in the 2 stages, in the sequence shown in the illustration.
- Stage 1: Tighten bolts 1-9 to 10 Nm (89 lb-in).
- Stage 2: Tighten bolt 10 to 48 Nm (35 lb-ft).

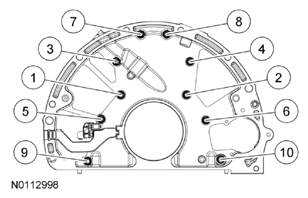

  Fig 1: Identifying Tightening Sequence Of Engine Rear Cover Mounting Bolts
  Courtesy of FORD MOTOR CO.
NOTE: Do not use magnetic screwdrivers or other magnetic tools around the Crankshaft Position (CKP) sensor and the crankshaft sensor pulse ring or damage to the components may occur.

Connect the CKP electrical connector.
Install the turbocharger downpipe bracket bolt.
- Tighten to 24 Nm (18 lb-ft).

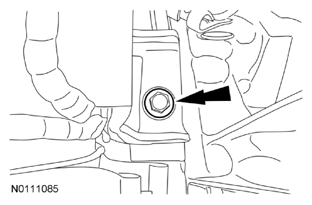

  Fig 2: Locating Turbocharger Downpipe Bracket Bolt
  Courtesy of FORD MOTOR CO.
Install the crankshaft rear seal. For additional information, refer to CRANKSHAFT REAR SEAL .
Install the upper oil pan. For additional information, refer to OIL PAN - UPPER .
Install the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
