Special Tool(s)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent |
|
| Gauge Bar 307-400 |

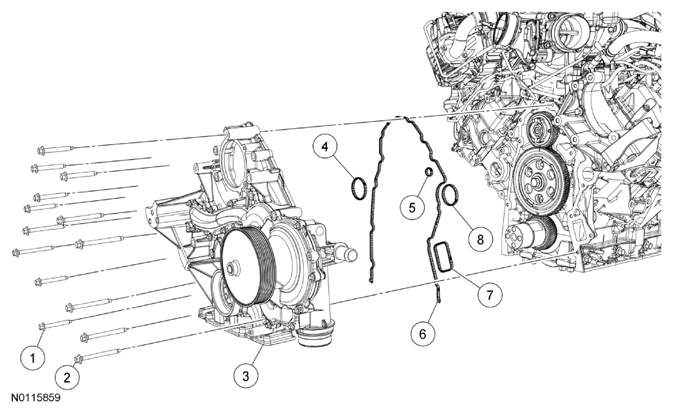

| Item | Part Number | Description |
|---|---|---|
| 1 | W500314 | Engine front cover bolt (7 required) |
| 2 | W500318 | Engine front cover bolt (7 required) |
| 3 | 6019 | Engine front cover assembly |
| 4 | 6020 | Engine front cover gasket |
| 5 | 6020 | Engine front cover gasket |
| 6 | 6020 | Engine front cover gasket |
| 7 | 6020 | Engine front cover gasket |
| 8 | 6020 | Engine front cover gasket |
