LH cylinder head

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

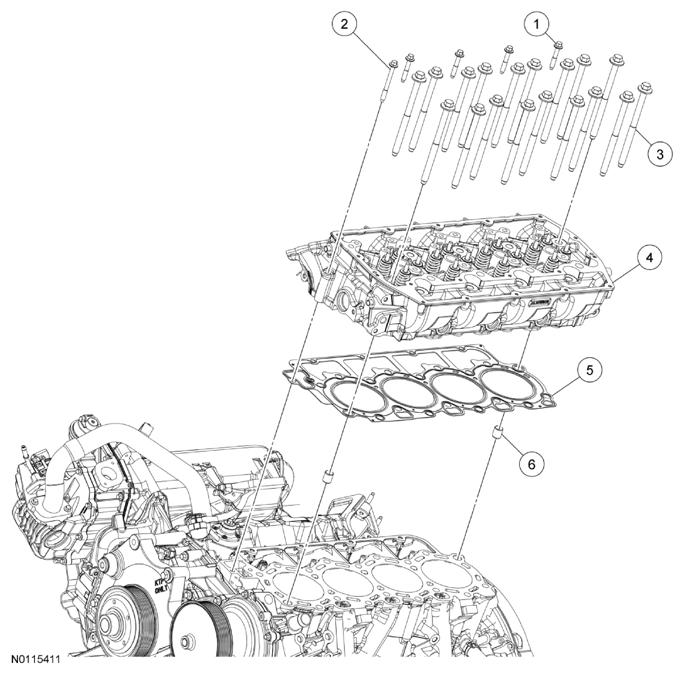

Fig 1: Exploded View Of LH Cylinder Head

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6065	Cylinder head bolt (M8, 4 required)
2	6065	Cylinder head bolt (M8)
3	6065	Cylinder head bolt (M12, 18 required)
4	6049	Cylinder head
5	6051	Cylinder head gasket
6	W714565	Cylinder head dowel (2 required)
