Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the cooling fan and cooling fan stator. For additional information, refer to ENGINE COOLING - DIESEL ENGINES .
  3. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  4. WARNING: Support the vibration damper during mounting bolt removal. The damper can slide off the nose of the crankshaft. Failure to follow this instruction may result in serious personal injury.

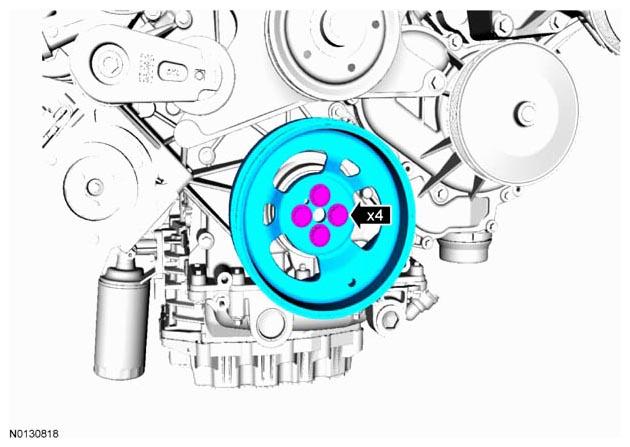

    Remove the 4 bolts and the crankshaft pulley.

    • Discard the bolts.
      G08593150
