Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: To prevent engine damage, always install 4 new bolts when installing the crankshaft pulley.
    NOTE: Use the Strap Wrench to prevent the engine from turning while tightening the bolts.

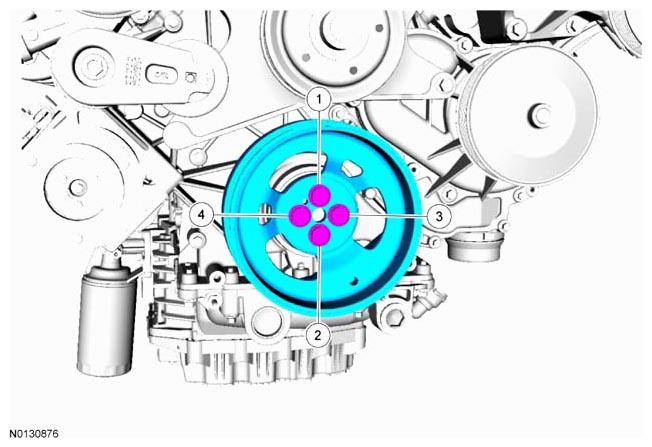

    Position the crankshaft pulley and install 4 new bolts. Tighten in 2 stages, in the sequence shown in the illustration.

    • Stage 1: Tighten to 30 Nm (22 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
      G08593151
  2. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Install the cooling fan stator and cooling fan. For additional information, refer to ENGINE COOLING - DIESEL ENGINES .
