Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Failure to install the front crankshaft seal with the part numbers facing out may result in engine damage.

NOTE: Do not discard the installation sleeve provided with the front crankshaft seal. It is used for installation of the crankshaft seal.

NOTE: Check for correct orientation of the installation sleeve prior to sliding the seal on the crankshaft.

NOTE: Apply clean engine oil to the seal and crankshaft sealing surface.

Position the installation sleeve onto the crankshaft, slide the new front crankshaft seal over the installation sleeve onto the crankshaft.
- Remove the installation sleeve.

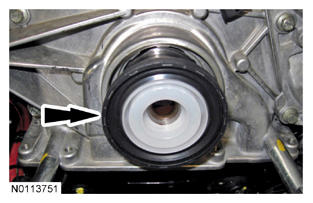

  Fig 1: Locating Crankshaft Sleeve
  Courtesy of FORD MOTOR CO.
Position the new front crankshaft slinger on the crankshaft.

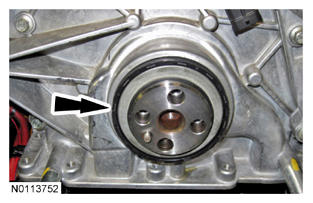

Fig 2: Locating Crankshaft Front Crankshaft Slinger
Courtesy of FORD MOTOR CO.
Using the Front Crank Seal Installer, install a new front crankshaft seal and front crankshaft slinger.

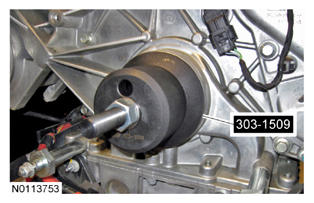

Fig 3: Installing Front Crankshaft Seal And Front Crankshaft Slinger Using Front Crank Seal Installer
Courtesy of FORD MOTOR CO.
Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
