Rocker Arm Cleaning and Inspection

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Do not disassemble the rocker arm assembly. They are serviced as an assembly only.

    Clean all parts with a suitable solvent. Use filtered, compressed air to dry the parts.

    Fig 1: Identifying Rocker Arm Assembly
    G08593107Courtesy of FORD MOTOR CO.
  2. Looking from the side of the rocker arm assembly, inspect each rocker arm ball for scuffing. Install new rocker arm assemblies as required.
    Fig 2: Locating Rocker Arm Ball
    G08593108Courtesy of FORD MOTOR CO.

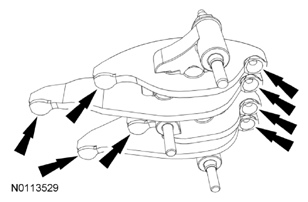

  3. Inspect each rocker arm pivot foot and cup for pitting and scuffing. Install new rocker arm assemblies as required.
    Fig 3: Locating Rocker Arm Pivot Foot And Cup
    G08593109Courtesy of FORD MOTOR CO.
