Special Tool(s)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |

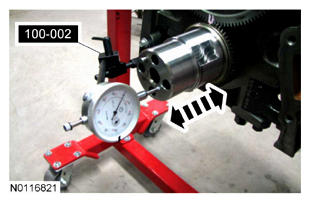

- Install the Dial Indicator Gauge with Holding Fixture, check the crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the Dial Indicator Gauge.
- Move the crankshaft to the front of the cylinder block. Record the measurement. For additional information, refer to SPECIFICATIONS .
