Bearing Inspection

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect bearings for the following defects. Possible causes are shown.
    1. Cratering - fatigue failure.
    2. Spot glazing - incorrect seating.
    3. Scratching - dirty.
    4. Base exposed - poor lubrication.
    5. Both edges worn - journal damaged.
    6. One edge worn - journal tapered or bearing not seated.

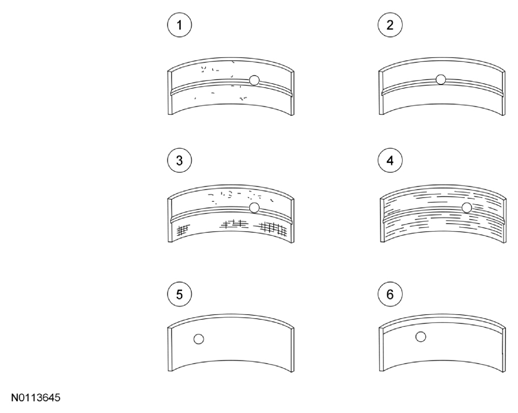

      Fig 1: Identifying Bearing Defects
      G08593059Courtesy of FORD MOTOR CO.
