Disassembly And Assembly Of Subassemblies: Piston: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil (US); Motorcraft® SAE 10W-30 Super Duty Motor Oil (Canada) XO-10W30-QSD (US); CXO-10W30-LSD12 (Canada) |
WSS-M2C171-E |

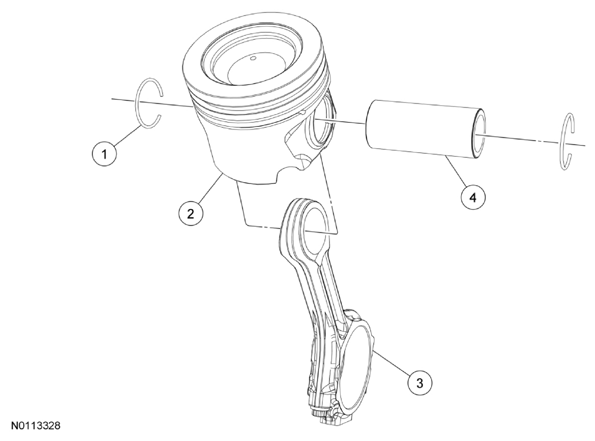

| Item | Part Number | Description |
|---|---|---|
| 1 | 6140 | Piston pin retainer (2 required) |
| 2 | 6108 | Piston |
| 3 | 6200 | Connecting rod |
| 4 | 6135 | Piston pin |
