Cylinder Head: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |
| Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil (US); Motorcraft® SAE 10W-30 Super Duty Motor Oil (Canada) XO-10W30-QSD (US); CXO-10W30-LSD12 (Canada) |
WSS-M2C171-E |
NOTE:
Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE:

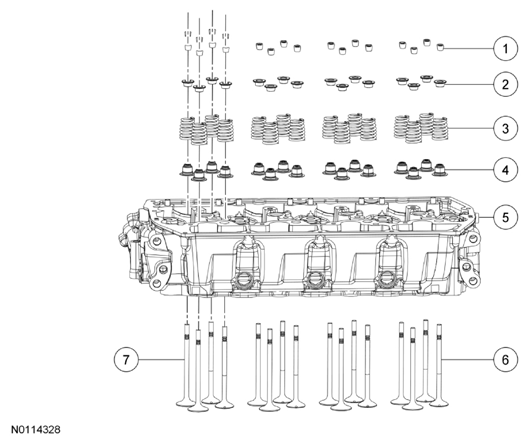

Left side shown, right side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Valve stem key (32 required) |
| 2 | 6514 | Valve spring retainer (16 required) |
| 3 | 6513 | Valve spring (16 required) |
| 4 | 6571 | Valve seal assembly (16 required) |
| 5 | 6049 | Cylinder Head |
| 6 | 6505 | Exhaust valve (8 required) |
| 7 | 6507 | Intake valve (8 required) |
