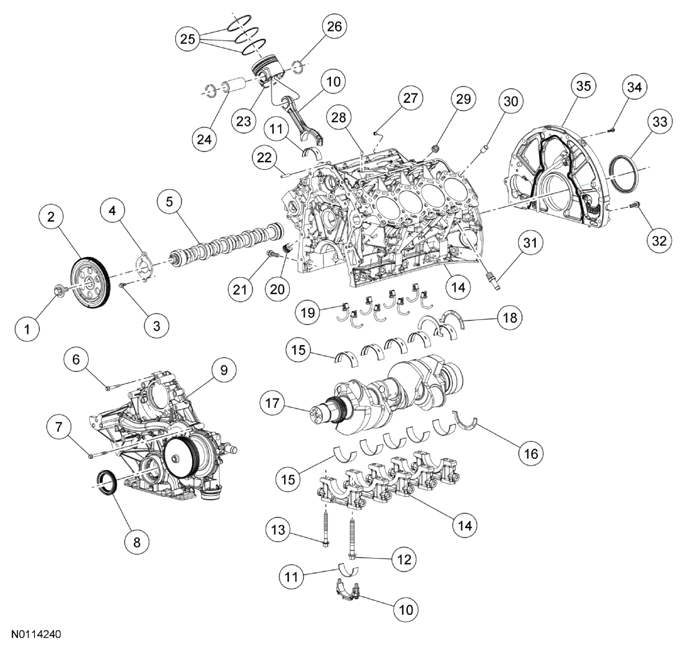

Crankshaft, Camshaft, Piston and Engine Covers
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6279 | Camshaft gear bolt |
| 2 | 6A303 | Camshaft gear |
| 3 | W500223 | Camshaft thrust plate bolt (2 required) |
| 4 | 6269 | Camshaft thrust plate |
| 5 | 6250 | Camshaft |
| 6 | W500314 | Engine front cover bolt (7 required) |
| 7 | W500318 | Engine front cover bolt (7 required) |
| 8 | 6700 | Front crankshaft seal |
| 9 | 6019 | Engine front cover |
| 10 | 6200 | Connecting rod |
| 11 | 6211 | Connecting rod bearing |
| 12 | 6345 | Crankshaft main bearing bolt (M15, inner) (10 required) |
| 13 | 6345 | Crankshaft main bearing bolt (M12, outer) (10 required) |
| 14 | 6010 | Cylinder block |
| 15 | 6D309 | Crankshaft bearing |
| 16 | 6K302 | Crankshaft main bearing lower thrust washer |
| 17 | 6303 | Crankshaft |
| 18 | 6A341 | Crankshaft main bearing upper thrust washer (2 required) |
| 19 | 6K868 | Piston cooling tube (8 required) |
| 20 | W715017 | Pipe plug |
| 21 | 6345 | Crankshaft main bearing side bolt (10 required) |
| 22 | W525585 | Front cover roll pin |
| 23 | 6108 | Piston (8 required) |
| 24 | 6135 | Piston pin (8 required) |
| 25 | 6148 | Piston ring set (8 required) |
| 26 | 6140 | Piston pin retaining ring (16 required) |
| 27 | W701517 | Pipe plug |
| 28 | W706860 | Turbocharger alignment dowel |
| 29 | W701548 | Pipe plug |
| 30 | W714565 | Cylinder head dowel (4 required) |
| 31 | 8592 | Oil cooler inlet connector |
| 32 | W714796 | Engine rear cover bolt (M10) |
| 33 | 6701 | Crankshaft rear seal |
| 34 | W709818 | Engine rear cover bolt (M6) (9 required) |
| 35 | 6D082 | Engine rear cover |
