Exhaust Y-Pipe - 3.5L Ti-VCT: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure, refer to SAFETY WARNINGS
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.
NOTE:
Always install new nuts and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.
- With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING , Lifting Points.
- If equipped, detach the 3 retainers and remove the splash shield.
- Loosen the Torca® clamp retainer.
-
NOTE: Do not damage or tear the isolator during removal.
Using soapy water, detach the exhaust Y-pipe isolator.

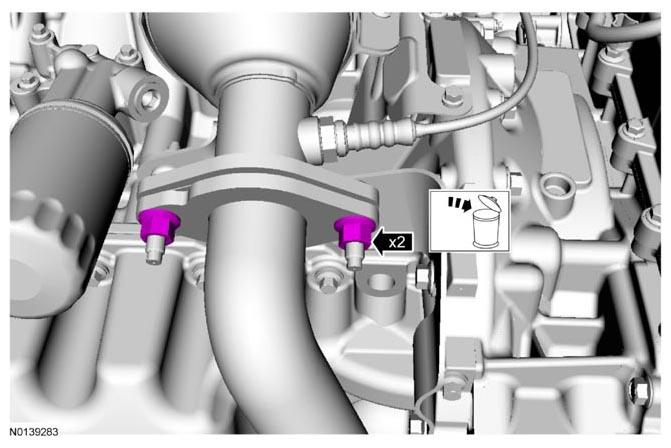

- Remove and discard the 2 exhaust Y-pipe-to-Left Hand (LH) catalytic converter manifold nuts and gasket.

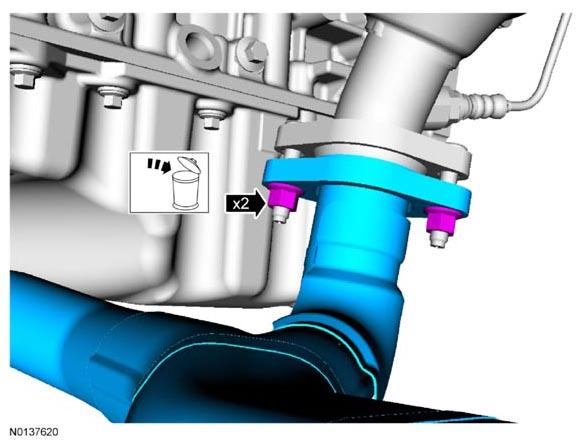

- Remove and discard the 2 exhaust Y-pipe-to-Right Hand (RH) catalytic converter manifold nuts.
