Exhaust Y-Pipe - 3.5L Ti-VCT: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Always install new nuts and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.

Install the exhaust Y-pipe with new nuts and gasket and hand-tighten all fasteners.
1. Attach the exhaust Y-pipe isolator.

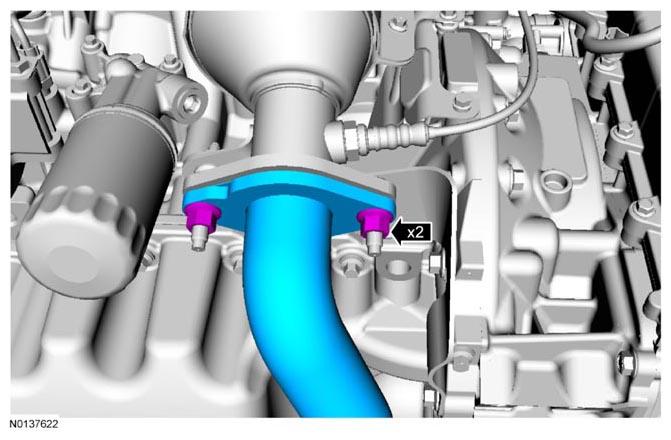

Evenly tighten the 2 new exhaust Y-pipe-to-Left Hand (LH) catalytic converter manifold nuts.
1. Tighten to 40 Nm (30 lb-ft).

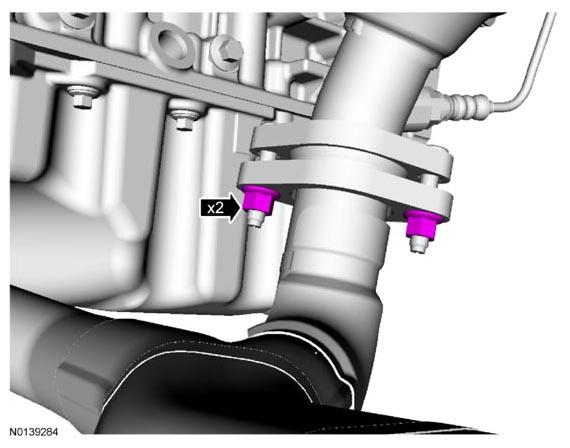

Evenly tighten the 2 new exhaust Y-pipe-to-Right Hand (RH) catalytic converter nuts.
1. Tighten to 40 Nm (30 lb-ft).
Tighten the Torca® clamp retainer.
1. Tighten to 55 Nm (41 lb-ft).
If equipped, install the splash shield and 3 retainers.
