Exhaust Flexible Pipe - LH, 3.5L GTDI: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible pipe or damage to the exhaust system may occur.

Install the LH exhaust flexible pipe with a new gasket and fasteners.
- Hand-tighten all fasteners.

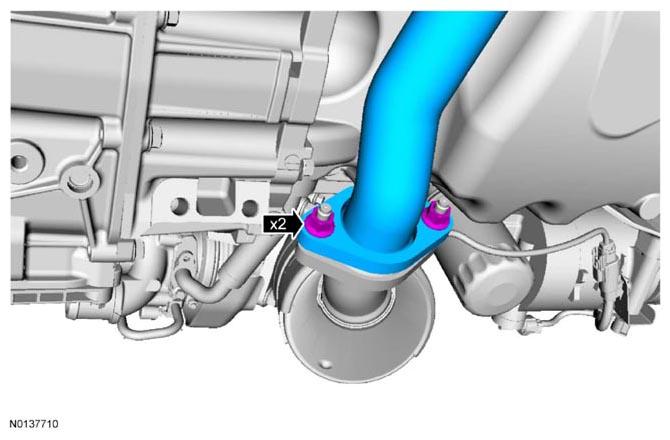

Tighten the LH exhaust flexible pipe-to-underbody catalytic converter nuts.
- Tighten to 40 Nm (30 lb-ft).
NOTE: Make sure the LH exhaust flexible pipe is straight and is approximately 25 mm (0.984 in) from all components.

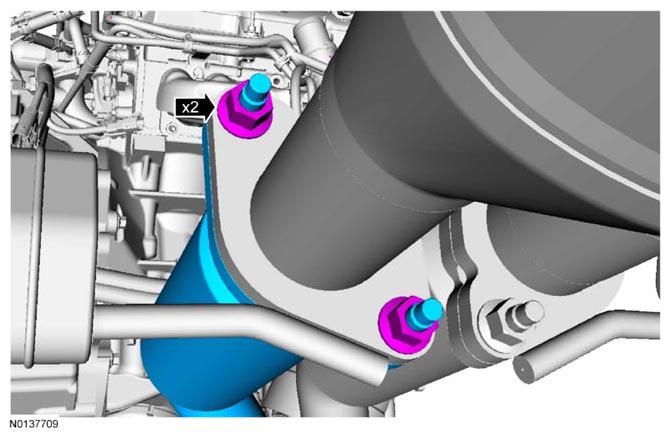

Tighten the LH exhaust flexible pipe-to-LH catalytic converter nuts.
- Alternately tighten the 2 nuts to 40 Nm (30 lb-ft).

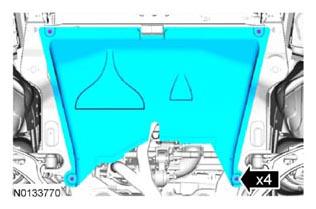

If equipped, install the 4 retainers and the underbody shield.
