Catalytic Converter - RH Manifold: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Exhaust fasteners are of a torque prevailing design. Use only new fasteners with the same part number as the original. Torque values must be used as specified during reassembly to make sure of correct retention of exhaust components.

All vehicles

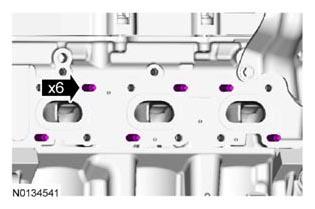

Install 6 new RH catalytic converter manifold-to-cylinder head studs.
1. Tighten to 12 Nm (106 lb-in).
NOTE: Failure to tighten the RH catalytic converter manifold-to-cylinder head nuts to specification a second time will cause the RH catalytic converter manifold to develop an exhaust leak.

Using a new gasket, install the RH catalytic converter manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration.
1. Stage 1: Tighten to 25 Nm (18 lb-ft).
2. Stage 2: Tighten to 25 Nm (18 lb-ft).
AWD vehicles
Install the transaxle support insulator - anti roll AWD . REFER to TRANSMISSION SUPPORT INSULATOR - ANTI-ROLL AWD .
All vehicles

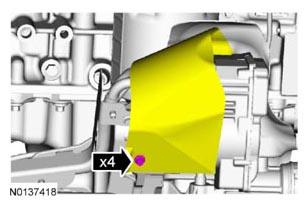

Position back the EPAS shield and install the 4 bolts.
1. Tighten to 9 Nm (80 lb-in).

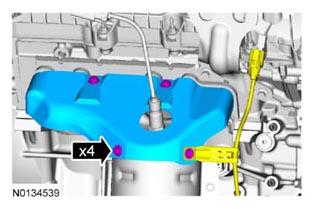

Install the RH catalytic converter manifold heat shield, CMS wiring harness bracket and the 4 bolts.
1. Tighten to 10 Nm (89 lb-in).
Install the exhaust Y-pipe. Refer to EXHAUST Y-PIPE - 3.5L TI-VCT or Refer to EXHAUST Y-PIPE - 3.7L TI-VCT .

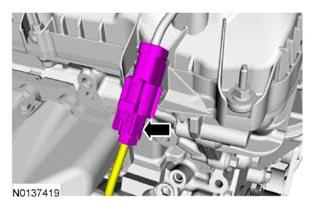

Connect the RH CMS electrical connector.
Install the RH HO2S sensor. REFER to HEATED OXYGEN SENSOR (HO2S) - 3.5L TI-VCT, 3.7L TI-VCT
Start engine and check for exhaust leaks.
