Catalytic Converter - LH, 3.5L GTDI: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Always install new fasteners and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
- Remove the LH HO2S . For additional information, REFER to ELECTRONIC ENGINE CONTROLS .
- Remove the LH exhaust flexible pipe. For additional information, REFER to EXHAUST FLEXIBLE PIPE - LH, 3.5L GTDI .
- If equipped, remove the 10 retainers and the skid plate.
- Disconnect the LH CMS
electrical connector.

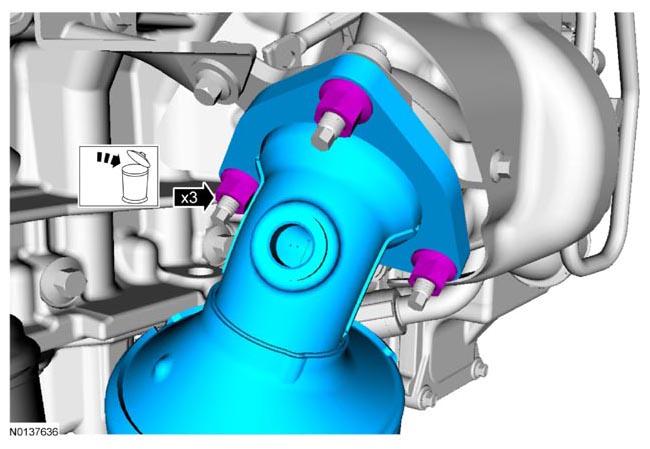

- Remove the 3 LH catalytic converter-to-turbocharger nuts and the catalytic converter.
