Transfer Case Cooler: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

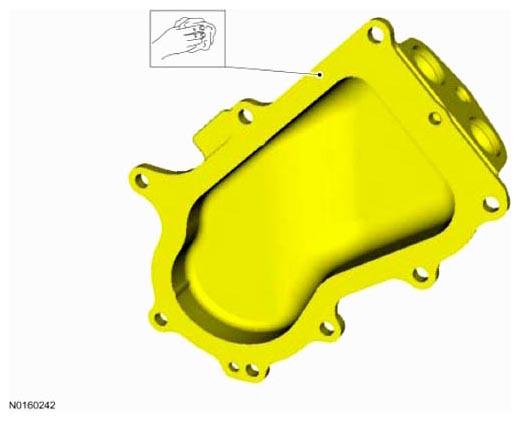

Courtesy of FORD MOTOR CO.

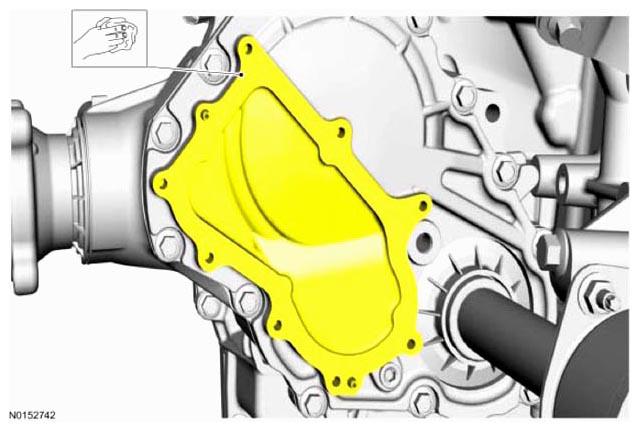

Courtesy of FORD MOTOR CO.

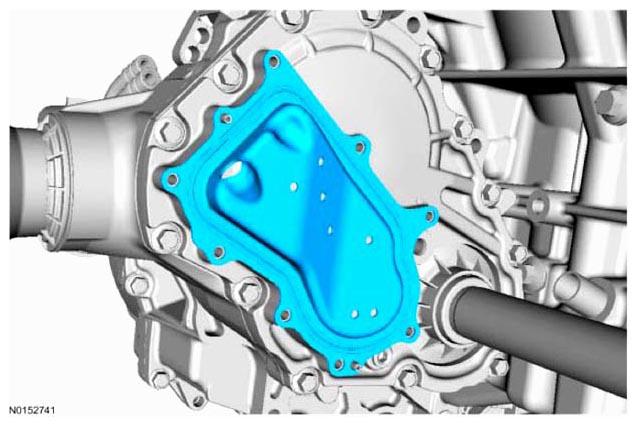

Courtesy of FORD MOTOR CO.

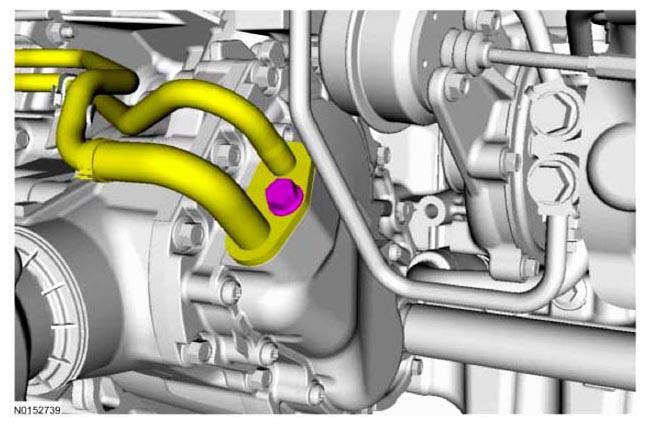

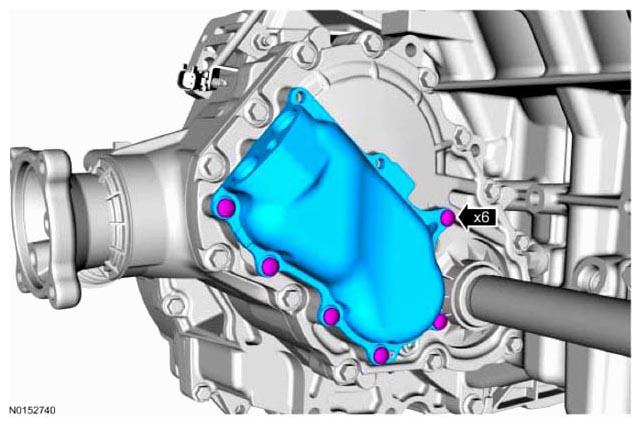

- Tighten to 12 Nm (106 lb-in).
Courtesy of FORD MOTOR CO.

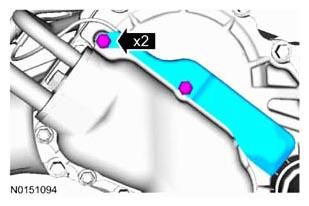

- Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR CO.

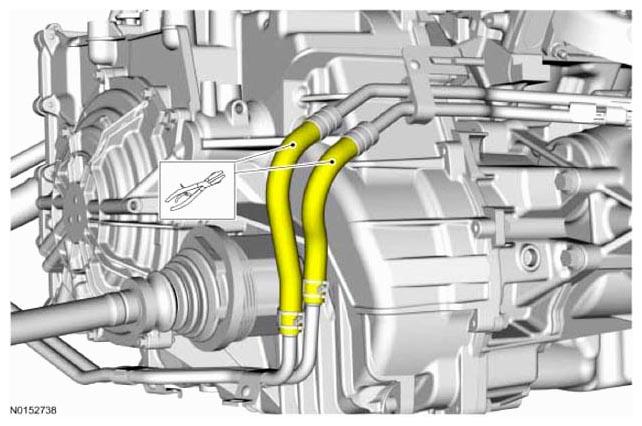

Remove hose clamp pliers.

Courtesy of FORD MOTOR CO.
Fill the PTU fluid level. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .

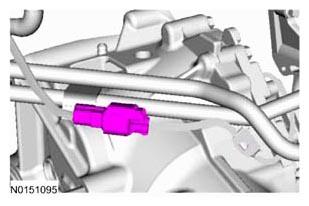

NOTE: Replace the O-ring before installing the PTU temperature sensor.
- Tighten to 12 Nm (106 lb-in).
Courtesy of FORD MOTOR CO.

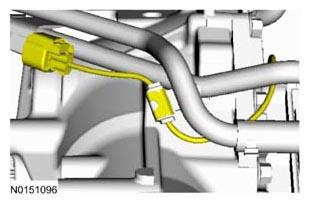

Courtesy of FORD MOTOR CO.

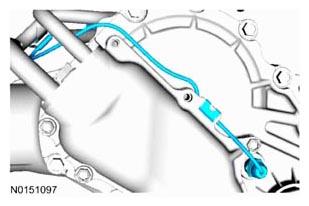

Courtesy of FORD MOTOR CO.
- Tighten to 12 Nm (106 lb-in).
Courtesy of FORD MOTOR CO.
Install the RH catalytic converter. Refer to EXHAUST SYSTEM .
Fill and bleed the cooling system. Refer to ENGINE COOLING SYSTEM .
