Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING , Lifting Points.

NOTE: Index-mark both the driveshaft flanges for installation.

Remove the 4 driveshaft-to-Power Transfer Unit (PTU) output flange bolts. Disconnect the driveshaft from the PTU and position it aside.

Using mechanic's wire, support the driveshaft.

Courtesy of FORD MOTOR CO.

NOTE: Rotational torque of the PTU rear output shaft flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

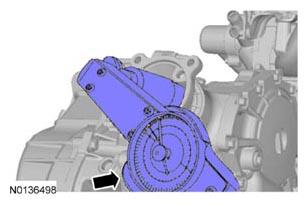

Using a suitable torque wrench, measure and record the rotational torque of the PTU output shaft.

Courtesy of FORD MOTOR CO.

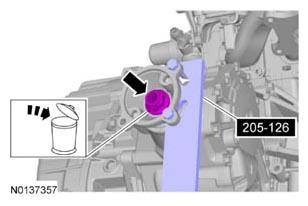

Using the 205-126 T78P-4851-A, hold the output pinion flange. Remove and discard the pinion nut.

Courtesy of FORD MOTOR CO.

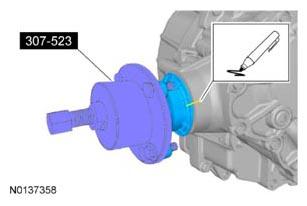

NOTE: Index-mark the output pinion flange to the pinion shaft.

Using the 307-523, remove the output pinion flange.

Courtesy of FORD MOTOR CO.
Remove and discard the output shaft seal.

Courtesy of FORD MOTOR CO.
Remove the oil slinger.

Courtesy of FORD MOTOR CO.
Remove the outer pinion bearing.

Courtesy of FORD MOTOR CO.
Remove and discard the collapsible spacer.

Courtesy of FORD MOTOR CO.
