Output Shaft Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the new collapsible spacer.

Courtesy of FORD MOTOR CO.
Install the outer pinion bearing.

Courtesy of FORD MOTOR CO.
Install the oil slinger.

Courtesy of FORD MOTOR CO.

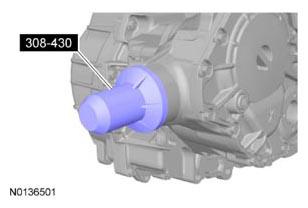

Using the 308-430, install the new output shaft seal.

Courtesy of FORD MOTOR CO.

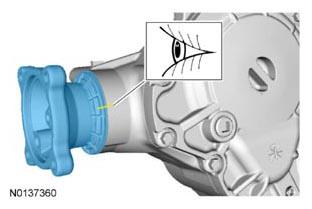

NOTE: Install the output pinion flange to engage the spline as previously marked. Install a new output pinion flange and deflector if the output shaft seal mating surface is damaged.

Install the output pinion flange.

Courtesy of FORD MOTOR CO.
NOTE: Refer to the rotational torque previously recorded with the Nm (lb-in) torque wrench. Tighten the pinion nut in small increments until it is within 0.3 Nm (3 lb-in) of the reference measurement. If 0.3 Nm (3 lb-in) is exceeded, then the collapsible spacer will be damaged and a new collapsible spacer will be required.

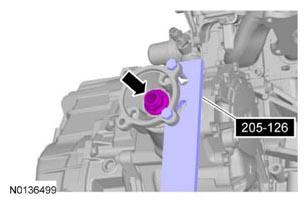

Using the 205-126 T78P-4851-A to hold the output pinion flange, install and tighten the new pinion flange nut.

Courtesy of FORD MOTOR CO.

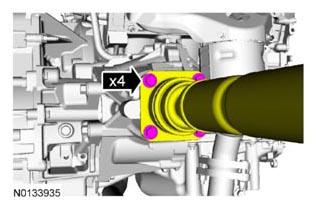

Using the index mark, position the driveshaft and install the 4 driveshaft-to-Power Transfer Unit (PTU) output flange bolts.

Tighten to 70 Nm (52 lb-ft).

Courtesy of FORD MOTOR CO.

Fill the PTU as necessary. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
