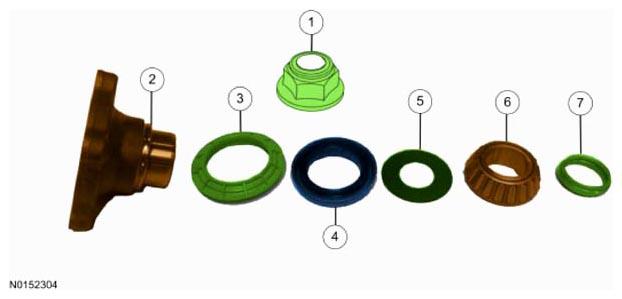

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR CO.
|
| Item |
Part Number |
Description |
| 1 |
7275 |
Pinion flange nut (part of 7275 kit) |
| 2 |
7B214 |
Output pinion flange |
| 3 |
7B214 |
Pinion flange dust deflector (part of 7B214) |
| 4 |
7275 |
Output shaft seal (part of 7275 kit) |
| 5 |
7H421 |
Oil slinger |
| 6 |
7H451 |
Outer Pinion bearing |
| 7 |
7275 |
Collapsible spacer (part of 7275 kit) |
