Wiring Harness Electrical Connectors

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

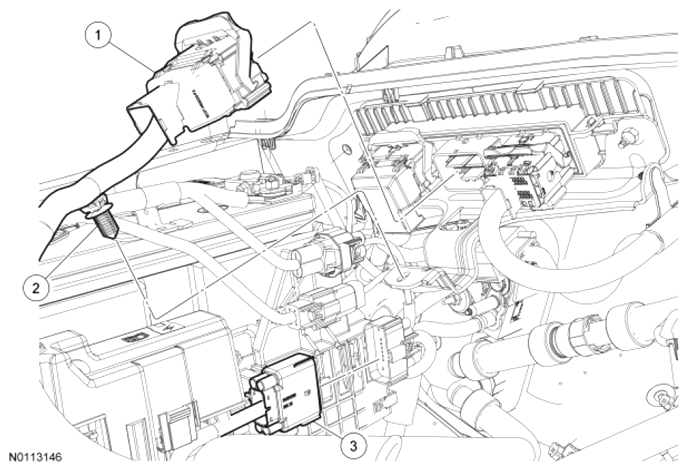

Fig 1: Identifying PCM Electrical Connector, Wiring Harness Electrical Connector And Retainers
G07480007Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - PCM electrical connector (part of 12C508)
2 - Wiring harness retainer (part of 12C508)
3 - Wiring harness electrical connector (part of 12C508)
