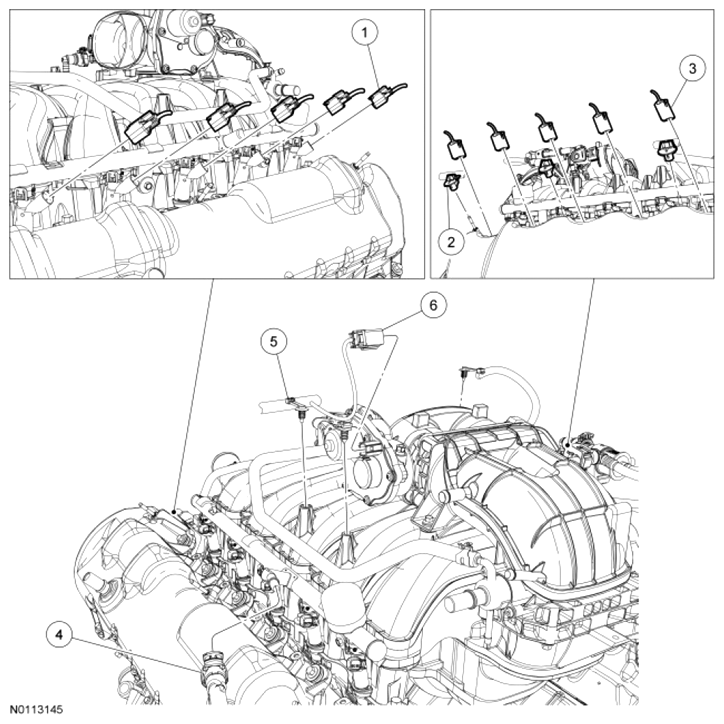

Fuel Supply Tube and Electrical Connectors
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH Fuel injector electrical connector (part of 12C508) (5 required) |
| 2 | 14A464 | Wiring harness retainer (part of 12C508) (3 required) |
| 3 | 14A464 | Coil-on-plug electrical connector (part of 12C508) (3 required) |
| 4 | 9J338 | Fuel supply tube quick connect coupling |
| 5 | - | Engine wiring harness retainer (part of 12C508) (3 required) |
| 6 | 14A464 | Electronic Throttle Control (ETC) electrical connector (part of 12C508) |
