Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Press the position retaining tabs and rotate the lower cooling fan shroud upward.

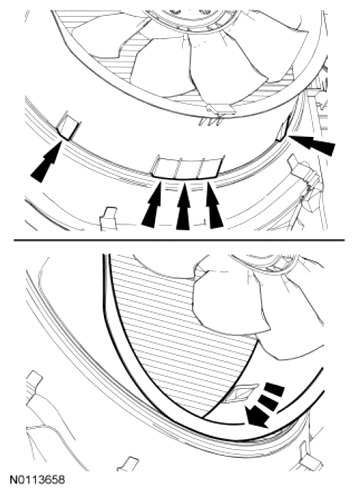

    Fig 1: Rotating Lower Cooling Fan Shroud
    G07480025Courtesy of FORD MOTOR CO.
  3. Rotate the tensioner clockwise and remove the accessory drive belt.
    Fig 2: Rotating Tensioner Clockwise
    G06126189Courtesy of FORD MOTOR CO.
  4. Remove the crankshaft pulley bolt and washer.
    • Discard the crankshaft pulley bolt.
  5. Using the Crankshaft Vibration Damper Remover, remove the crankshaft pulley.
    Fig 3: Identifying Crankshaft Vibration Damper Remover
    G06138653Courtesy of FORD MOTOR CO.
