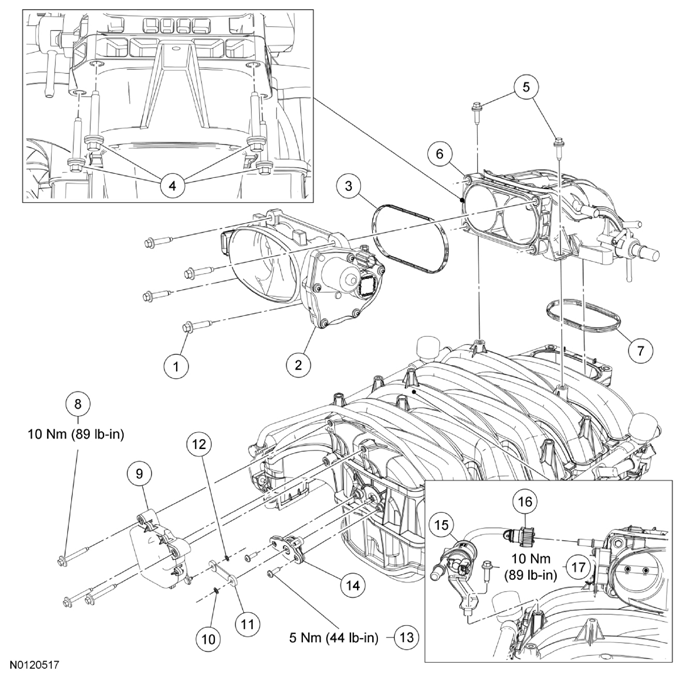

Throttle Body (TB) and TB Spacer
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500215 | Throttle Body (TB) bolt (4 required) |
| 2 | 9E926 | TB |
| 3 | 9E936 | TB gasket |
| 4 | W503280 | Lower TB spacer bolts (4 required) |
| 5 | W503275 | Upper TB spacer bolts (2 required) |
| 6 | 9A589 | TB spacer |
| 7 | 9L437 | TB spacer gasket |
| 8 | W503917 | Intake Manifold Runner Control (IMRC) actuator bolt (3 required) |
| 9 | 9J559 | IMRC actuator |
| 10 | - | IMRC actuator control rod clip (part of 9L488) |
| 11 | 9L488 | IMRC actuator control rod |
| 12 | - | IMRC actuator control rod clip (part of 9L488) |
| 13 | W506964 | IMRC intake manifold valve bolt (2 required) |
| 14 | 9L492 | IMRC intake manifold valve |
| 15 | 9C915 | Evaporative Emission (EVAP) canister purge valve |
| 16 | - | EVAP canister purge valve-to-intake manifold quick connect coupling (part of 9C915) |
| 17 | W500214 | EVAP canister purge valve bolt |
