Transmission - 3.5L GTDI: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING .
  2. Remove the battery and battery tray. REFER to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  3. Remove the ACL  outlet pipe. REFER to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  4. Remove the cowl panel grille. REFER to BODY PANEL SYSTEM - FRONT END BODY PANELS .
  5. G09088850
  6. G09088851
  7. G09088852
  8. G09088853
  9. G09088854
  10. G09088855
  11. G09088856
  12. G09088857
  13. G09088858
  14. G09088859
  15. G09088860
  16. G09088861
  17. Remove the crankcase vent tube. REFER to FUEL SYSTEM - GENERAL INFORMATION .
    G09088862
  18. G09088863
  19. G09088864
  20. G09088865
  21. Special Tool(s): Eye, Engine Lift 303-1245.
    G09088866
  22. G09088867
  23. NOTE: Index-mark the CAC  tube position for reference during installation.
    G09088868
  24. Special Tool(s): Support Bar, Engine 303-F072, Bar, Engine Spreader 303-1454.
    G09088869
  25. G09088870
  26. G09088871
  27. NOTE: Do not loosen the center bolt or damage to the transmission support insulator will occur.

    Remove the 2 upper transmission support insulator bolts.

    G09088872
  28. Remove the front subframe. REFER to BODY SYSTEM - UNI-BODY, SUBFRAME & MOUNTING SYSTEM .
  29. Remove the roll restrictors. Refer to TRANSMISSION SUPPORT INSULATOR - ANTI-ROLL, 3.5L GTDI .
  30. Drain the transmission fluid.
    • Tighten to 9 Nm (80 lb-in).
      G09088873

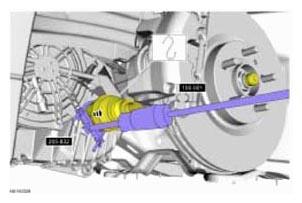

  31. NOTE: Do not allow the halfshaft to over angel or hang from the outer CV  joint. Always support the free end of the halfshaft or damage can occur.

    Remove and position aside the LH  Halfshaft.

    G09088874
  32. G09088875
  33. Remove the PTU  . REFER to TRANSFER CASE - POWER TRANSFER UNIT .
    1. Inspect the differential seal surface.
    2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.
    3. Inspect the differential side gear splines.
      G09088876
  35. G09088877
  36. G09088878
  37. G09088879
  38. Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
    G09088880
  39. Special Tool(s): Adapter, Transmission Jack 209-00152.

    General equipment: Transmission jack.

    G09088881

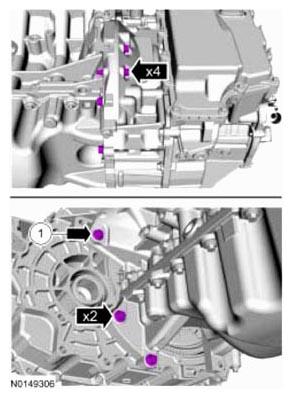

    1. If equipped.
      G09088882
  41. Special Tool(s): Retainer, Torque Converter 307-346
    G09088883
  42. G09088884

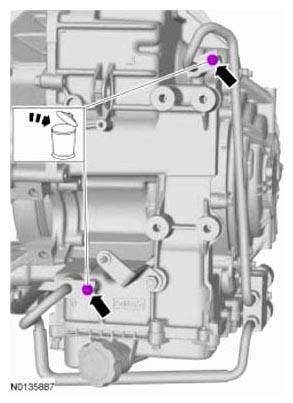

  43. G09088885
  44. G09088886
  45. NOTE: If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.
    G09088887
  46. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out transmission fluid cooler backflushing and cleaning. REFER to AUTOMATIC TRANSMISSION COOLING SYSTEM .
