Transmission - 3.5L GTDI: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to installation of a new, re-manufactured or overhauled transmission, the transmission fluid cooler tubes must be cleaned, otherwise transmission failure may occur.
NOTE: Prior to installation of a new, re-manufactured or overhauled transmission, flush out the cooler and cooler tubes. REFER to AUTOMATIC TRANSMISSION COOLING SYSTEM .
    1. Seal (7D258)
    2. Backing ring (7J324)
      G09088888
    • Tighten to 9 Nm (80 lb-in).
      G09088889

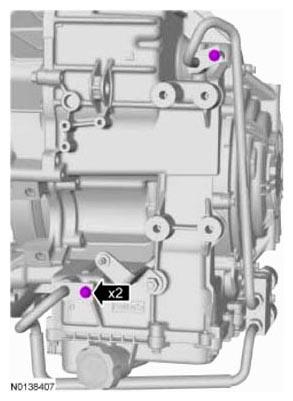

    • Tighten to 9 Nm (80 lb-in).
      G09088890
  4. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
    NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.
    • Tighten to 18 Nm (159 lb-in).
      G09088891
  5. Material: Multi-Purpose Grease XG-4 and/or XL-5
    G09088892
  6. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.
    NOTE: If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.
    G09088893
  7. Special Tool(s): Retainer, Torque Converter 307-346
    G09088894
  8. Install the transmission on the engine dowels.

    Special Tool(s): Adapter, Transmission Jack 209-00152.

    General equipment: Transmission jack.

    G09088895
    1. If equipped.
      • Tighten to 48 Nm (35 lb-ft).

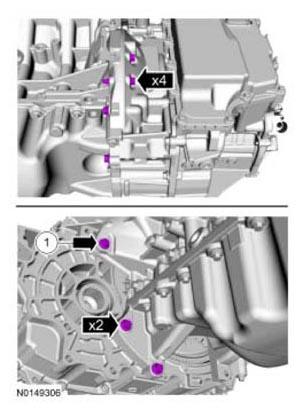

        G09088896
  10. G09088897

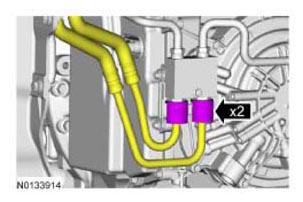

  11. G09088898
  12. NOTE: Use only the specified bolts for the torque converter. Standard length fasteners may bottom out and damage the torque converter clutch apply surface.

    Install 3 new torque converter bolts (W714722).

    • Install the first torque converter bolt in the slotted hole on the flexplate.
    • Tighten to 55 Nm (41 lb-ft).

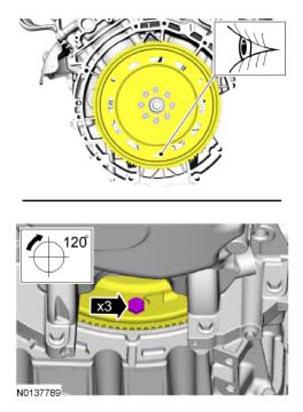

      G09088899

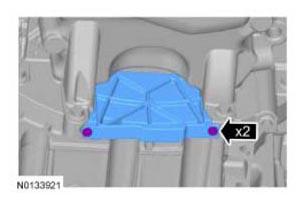

  13. G09088900
  14. Install the PTU  . REFER to TRANSFER CASE - POWER TRANSFER UNIT .

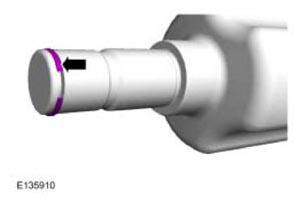

  15. G09088901
  16. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new halfshaft seal. REFER to, HALFSHAFT SEAL - LH .

  17. NOTE: Remove the seal protector before the halfshaft is installed completely.

    Using part: AA5P-4N206-A.

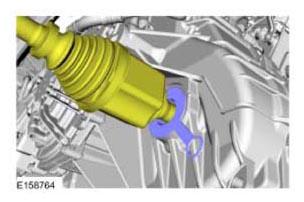

    G09088902

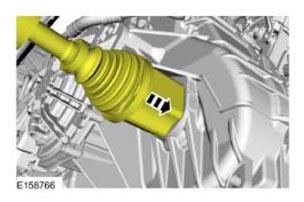

  18. NOTE: After insertion, pull the halfshaft inner end to make sure the circlip is locked.
    NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joint or damage can result.
    G09088903
  19. Install the front subframe. REFER to BODY SYSTEM - UNI-BODY, SUBFRAME & MOUNTING SYSTEM .
  20. Install the roll restrictors. Refer to TRANSMISSION SUPPORT INSULATOR - ANTI-ROLL, 3.5L GTDI .

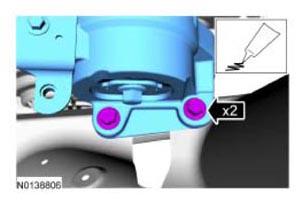

  21. Material: Threadlock and Sealer TA-25.
    • Tighten to 70 Nm (52 lb-ft).
      G09088904

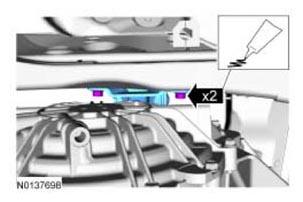

  22. Material: Threadlock and Sealer TA-25.
    • Tighten to 55 Nm (41 lb-ft).
      G09088905

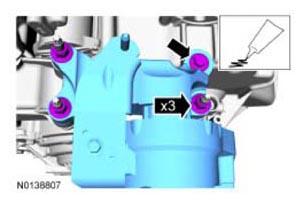

  23. Material: Threadlock and Sealer TA-25.
    • Tighten the bolt to 80 Nm (59 lb-ft).
    • Tighten the nuts to 63 Nm (46 lb-ft).
      G09088906
  24. Align the index marks.
    • Tighten to 5 Nm (44 lb-in).

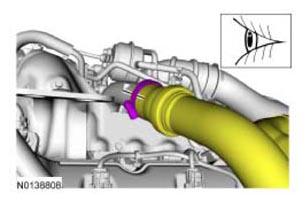

      G09088907

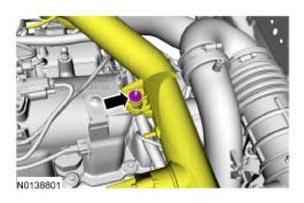

    • Tighten to 10 Nm (89 lb-in).
      G09088908

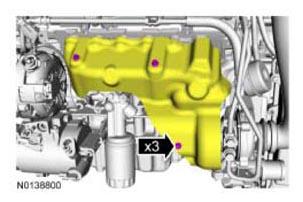

    • Tighten to 15 Nm (133 lb-in).
      G09088909
    • Tighten to 8 Nm (71 lb-in).

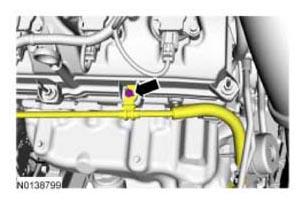

      G09088910
    • Tighten to 6 Nm (53 lb-in).

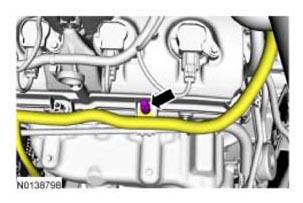

      G09088911

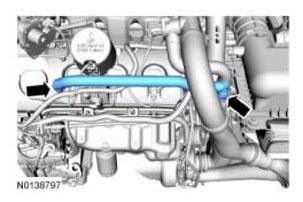

  29. G09088912
    • Tighten to 48 Nm (35 lb-ft).
      G09088913

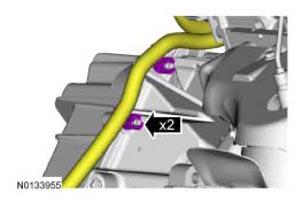

  31. G09088914

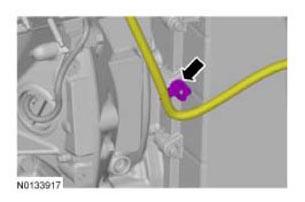

  32. G09088915

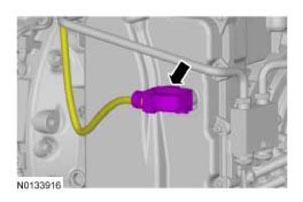

  33. G09088916

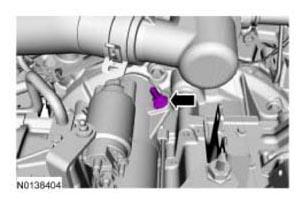

    • Tighten to 26 Nm (19 lb-ft).
      G09088917

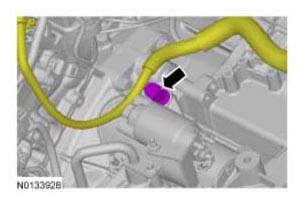

  35. G09088918

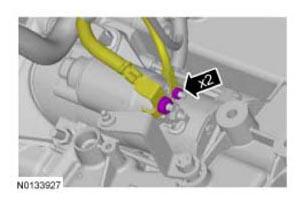

    • Tighten the starter battery terminal nut to 12 Nm (106 lb-in).
    • Tighten the starter solenoid terminal nut to 6 Nm (53 lb-in).
      G09088919

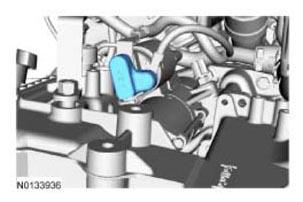

  37. Install the starter motor positive terminal cover.
    G09088920

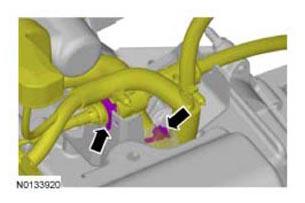

  38. G09088921
    • Tighten to 30 Nm (22 lb-ft).

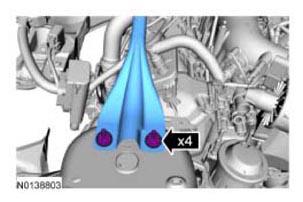

      G09088922

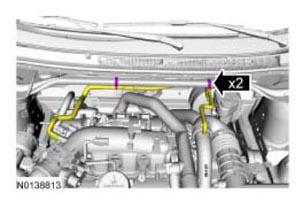

  40. G09088923
  41. Install the cowl panel grille. REFER to BODY PANEL SYSTEM - FRONT END BODY PANELS .
  42. Adjust the selector lever cable. REFER to AUTOMATIC TRANSMISSION EXTERNAL CONTROLS - TRANSMISSION CONTROL SWITCH for consol shift or REFER to AUTOMATIC TRANSMISSION EXTERNAL CONTROLS - COLUMN SHIFT for column shift.
  43. Install the battery tray. REFER to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  44. Install the ACL outlet pipe. REFER to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  45. Fill the transmission with clean transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
  46. If a new solenoid body is installed, the solenoid body strategy will need to be updated. Refer to SOLENOID BODY STRATEGY DOWNLOAD .
  47. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
