Main Control Cover - 3.7L Ti-VCT: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING .
- Remove the ACL assembly and outlet pipe. REFER to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .

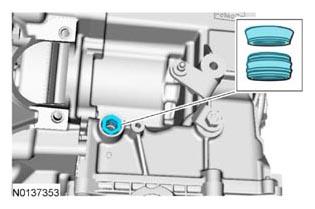

- Drain the transmission fluid.

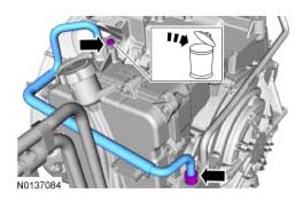

- Discard the specified component. Follow local disposal regulations.
-

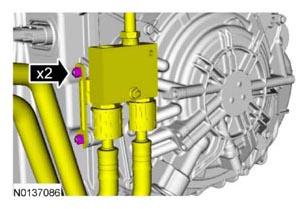

NOTE: If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.
-
NOTE: Note the location of the of the studbolts for assembly.
