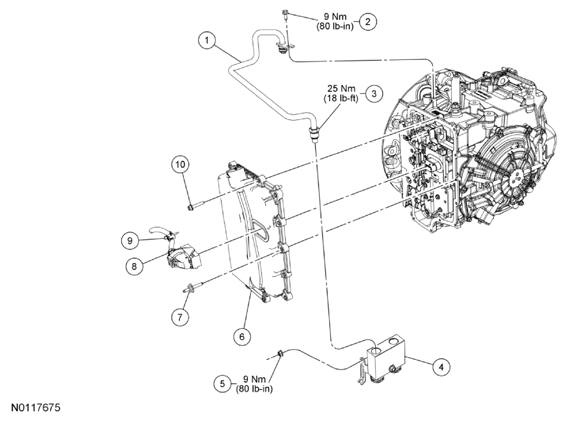

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H420 | Transmission mounted transmission fluid cooler tube |
| 2 | W711538 | Transmission mounted transmission fluid cooler tube bolt |
| 3 | - | Transmission fluid cooler tube nut (part of 7H420) |
| 4 | 7H322 | Transmission fluid cooler thermal bypass valve |
| 5 | W520101 | Transmission fluid cooler thermal bypass valve nut (2 required) |
| 6 | 7G004 | Main control cover |
| 7 | W708442 | Main control cover studbolt (5 required) |
| 8 | 7A488 | Transmission harness connector |
| 9 | 14A169 | Transmission harness retainer |
| 10 | 7J289 | Main control cover bolt (9 required) |
