Main Control Cover - 3.5L GTDI: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for damage. Visual check.
    G08412897

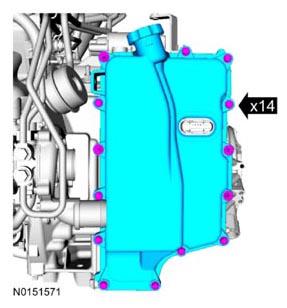

  2. NOTE: Install the studbolts in the correct locations as noted during disassembly.

    Loosely install the bolts.

    G08626980

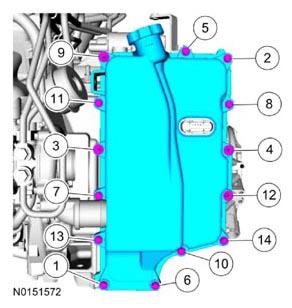

  3. Tighten the main control cover bolts in the sequence shown in illustration.
    • Tighten to 12 Nm (106 lb-in).
      G08626983
    • Tighten to 9 Nm (80 lb-in).

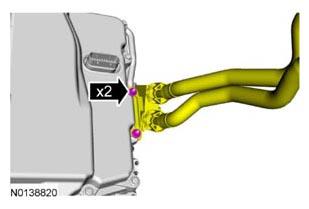

      G08626979

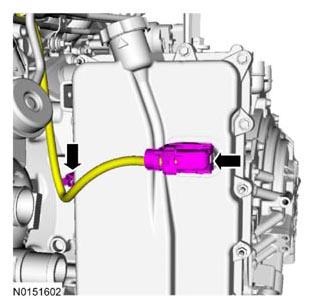

  5. G08626978

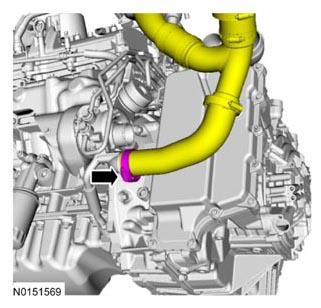

  6. G08626976
  7. If equipped.
    • Tighten to 70 Nm (52 lb-in).
      G08616440

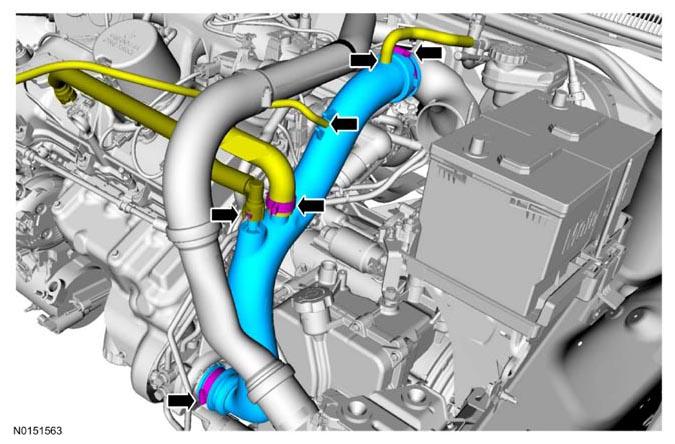

  8. G08626974
  9. Fill the transaxle with clean transmission fluid. Refer to TRANSMISSION FLUID DRAIN AND REFILL .
  10. Install the ACL  and outlet pipe. REFER to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
