Transaxle Case: Disassembly

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Special Tool(s): Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C), Transfer Gear Bearing Race Remover 307-577
    G08412932
  2. Punch a hole in the fluid dam. Center punch.
    G08412933
  3. General Equipment: Dent Puller
    G08412934
  4. Special Tool(s): Differential Bearing Cup Remover 307-586

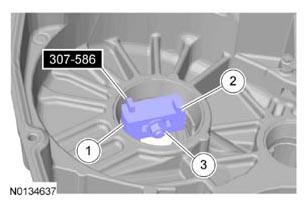

    1. Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case.
    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.
      G08627584

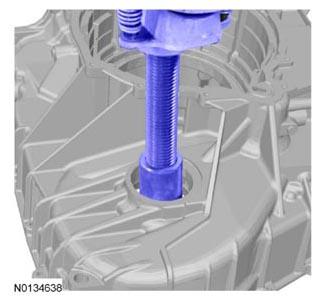

  5. General Equipment: Shop Press
    G08627585
  6. G08412950
  7. G08412949
  8. G08627588
  9. G08412947
