Torque Converter Housing: Disassembly

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

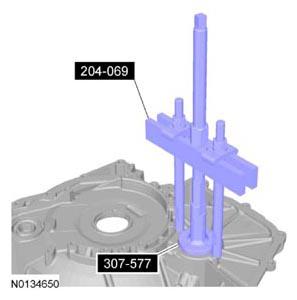

  1. Special Tool(s): Remover/Installer, Front Wheel Hub 204-069, Transfer Gear Bearing Race Remover 307-577
    G08627541

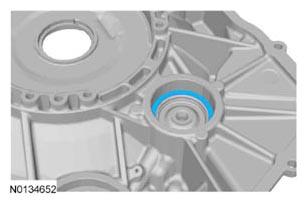

  2. G08627542
  3. Punch a hole in the fluid dam. Center punch.
    G08412963
  4. General Equipment: Dent Puller
    G08412964

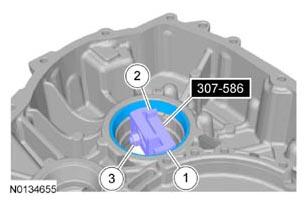

  5. Special Tool(s): Differential Bearing Cup Remover 307-586
    1. Position the Differential Bearing Cup Remover 307-586 in the torque converter housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the torque converter housing.
    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the torque converter housing, tighten the nut.
      G08627545
  6. General Equipment: Shop Press
    G09089343

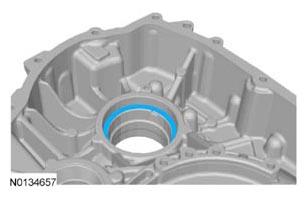

  7. G08627547
