Transmission Fluid Level
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
The transmission fluid level is checked with the transmission at normal operating temperature between 82.3°C (180°F) and 93.4°C (200°F). The transmission fluid level indicator is part of the filler cap. The correct transmission fluid level is between the MIN and MAX in the cross hatches of the transmission fluid level indicator.

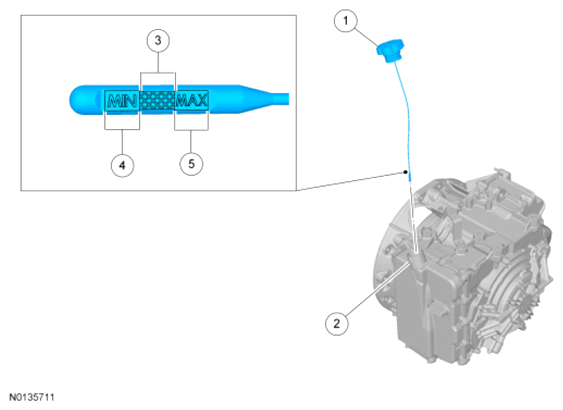

| Item | Description |
|---|---|
| 1 | Transmission fluid level indicator |
| 2 | Main control cover assembly |
| 3 | Correct transmission fluid level at normal operating temperature |
| 4 | Low transmission fluid level at normal operating temperature |
| 5 | High transmission fluid level at normal operating temperature |
