Section 227 (Automatic Transmission - 6F50/6F55)
>>
Description And Operation
>>
Electrical System
>>
Component Location
>>

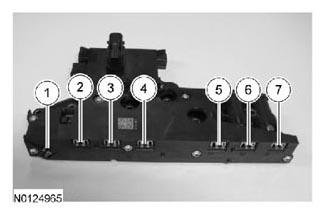

Solenoid Body
Solenoid Body
WARNING:
This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Item
Description
1
SSE
2
SSD
3
SSA
4
TCC
5
SSB
6
SSC
7
LPC
