Removal And Installation: Engine: Assembly

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: The engine is equipped with a cast aluminum (early build) or stamped steel (late build) crankshaft rear seal retainer plate. If the engine is equipped with a stamped steel plate, the seal and plate must be removed as an assembly and discarded.
NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. REFER to ENGINE SYSTEM - GENERAL INFORMATION .
NOTE: The Wheel Hub Bearing Cup Installer is used to install the VCT  solenoid seals.
NOTE: Refer to exploded view(s) and any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.

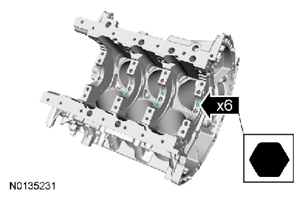

  1. Using a hexagonal screwdriver, install the 6 piston oil cool valves.
    • Tighten to 4 Nm (35 lb-in).
      G08337138

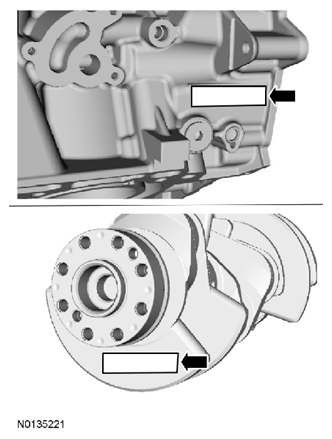

  2. NOTE: This procedure is for selecting bearings using a new crankshaft.

    Select the crankshaft main bearings for each crankshaft journal.

    • Read the code on the crankshaft flange.
    • Read the code on the cylinder block face.
    • The first letter after the first asterisk makes up the code for main No. 1 and the next letter for main No. 2. The first letter after the second asterisk makes up the code for main No. 3 and the last letter for main No. 4.
      G08337178
  3. NOTE: This chart is for selecting main bearings 1 and 4 only, the remaining bearings will be selected using a different chart in the next step.

    Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 4.

    • Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
    • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.
    • As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is a "1" for the upper bearing and a "2" for the lower bearing.
    • Repeat the above steps using the fourth letter of the block and crankshaft codes to select the No. 4 bearing.
      G07959210
  4. NOTE: This chart is for selecting main bearings 2 and 3 only.

    Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2 and 3.

    • Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.
    • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 2 crankshaft main bearing.
    • As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is "1".
    • Repeat the above steps using the third letter of the block and crankshaft codes to select the No. 3.
      G07959211
  5. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

    Using the original connecting rod cap bolts, install the connecting rod caps and bolts. Tighten the bolts in 3 stages.

    • Stage 1: Tighten to 23 Nm (17 lb-ft).
    • Stage 2: Tighten to 43 Nm (32 lb-ft).
    • Stage 3: Tighten an additional 90 degrees.
      G08622294
  6. Measure the connecting rod large end bore in 2 directions.
    • Remove the bolts and the rod cap.
    • Discard the connecting rod cap bolts.
      G08612643
  7. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.
    G09087007
  8. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.
    G07959214

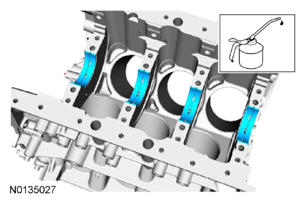

  9. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

    Lubricate the upper crankshaft main bearings with clean engine oil and install the 4 crankshaft main bearings in the cylinder block.

    G08622298
  10. NOTE: Do not install the upper thrust bearings until the crankshaft is installed.
    NOTE: Lubricate the thrust surfaces of the crankshaft with clean engine oil.

    Install the crankshaft onto the upper main bearings.

    G08622238

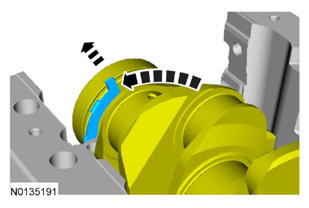

  11. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.

    G08622300

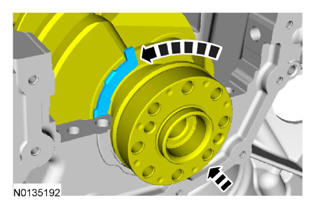

  12. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.

    G08622301

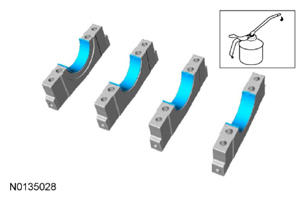

  13. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Visually check seating and squareness of the bearings to make sure of proper seating in caps.
    G08622302
  14. Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.
    G08622303
  15. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
    NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

    Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.

    G08622236

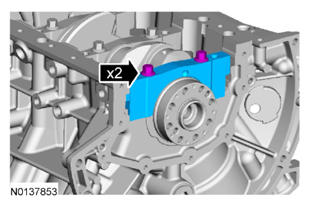

  16. Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.
    • Loosen the No. 4 main bearing cap bolts.
      G08622305
  17. NOTE: While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.

    Tighten the main bearing bolts in the sequence shown in illustration in 2 stages.

    • Stage 1: Tighten fasteners 1 through 8 to 33 Nm (24 lb-ft).
    • Stage 2: Tighten fasteners 1 through 8 an additional 135 degrees.
      G08622306
  18. Install the new 8 main bearing cap side bolts. Tighten in the sequence shown in illustration in 2 stages.
    • Stage 1: Tighten fasteners 1 through 8 to 24 Nm (18 lb-ft).
    • Stage 2: Tighten fasteners 1 through 8 an additional 180 degrees.
      G08622307
  19. Using 100-002 TOOL-4201-C, measure crankshaft end play.
    • Position the crankshaft to the rear of the cylinder block.
    • Zero 100-002 TOOL-4201-C.
    • Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
      G09087019
  20. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

    Prepare the connecting rod and cap.

    • Insert the new bolts in the rod cap.
    • Insert the upper and lower rod bearings into the rod and cap.
      G08622309
  21. Before installing the pistons into the cylinder block, verify proper ring gap location.
    • Center line of the piston parallel to the wrist pin bore.
    • Upper compression ring gap location.
    • Upper oil control segment ring gap location.
    • Lower oil control segment ring gap location.
    • Expander ring and lower compression ring gap location.
      G08030201
  22. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: The next 3 steps are for all 6 connecting rods, rod caps and pistons. Only 1 connecting rod, rod cap and piston is shown in illustration.
    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    NOTE: Make sure the piston rings are positioned to specifications for installation. For additional information, refer to the PISTON  information.
    NOTE: If the piston and or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
    NOTE: If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.

    Using the Piston Ring Compressor, install the piston and connecting rod assemblies.

    G09087022
  23. Seat the connecting rod on the crankshaft journal.

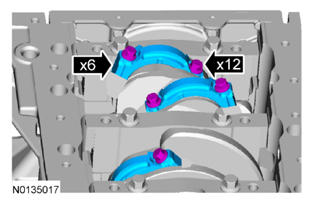

  24. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.

    Install the connecting rod cap and bolts. Tighten the bolts in 3 stages.

    • Stage 1: Tighten to 23 Nm (17 lb-ft).
    • Stage 2: Tighten to 43 Nm (32 lb-ft).
    • Stage 3: Tighten an additional degrees (90).
      G08622232
  25. Repeat the previous 3 steps until all 6 piston, connecting rod and connecting rod cap assemblies are installed.
  26. Install the main bearing cap support brace and the new bolts. Tighten in the sequence shown in illustration in 2 steps.
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten an additional 180 degrees.
      G09087024
  27. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 4 minutes of sealant application.
    NOTE: Cast aluminum (early build) crankshaft rear seal retainer plate shown in illustration, stamped steel (late build) crankshaft rear seal retainer plate is similar.
    NOTE: The stamped steel (late build) crankshaft rear seal retainer plate comes with the crankshaft rear seal.

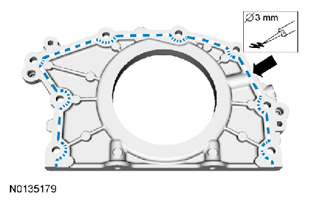

    Apply a 3 mm (0.12 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    G08337201

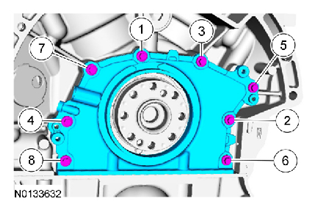

  28. Install the crankshaft rear seal retainer and the 8 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G08337863
  29. Install the oil pump and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G08029483

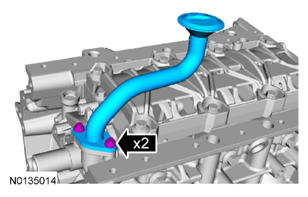

  30. Using a new O-ring seal, install the oil pump screen and pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G08622226
  31. NOTE: The A/C compressor must be installed on the cylinder block and the 2 bolts tightened prior to installing the oil pan.

    Install the A/C compressor and the 2 bolts.

    • Stage 1: Tighten to 25 Nm (18 lb-ft).
      G08622318
  32. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 3 mm (0.12 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    G08622319
  33. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block and A/C compressor within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 5.5 mm (0.22 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    G08622320

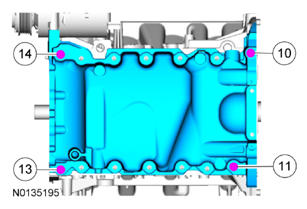

  34. NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.

    Install the oil pan and bolts 10, 11, 13 and 14.

    • Stage 1: Tighten to 3 Nm (27 lb-in).
    • Stage 2: Loosen the bolts 180 degrees.
      G08622321

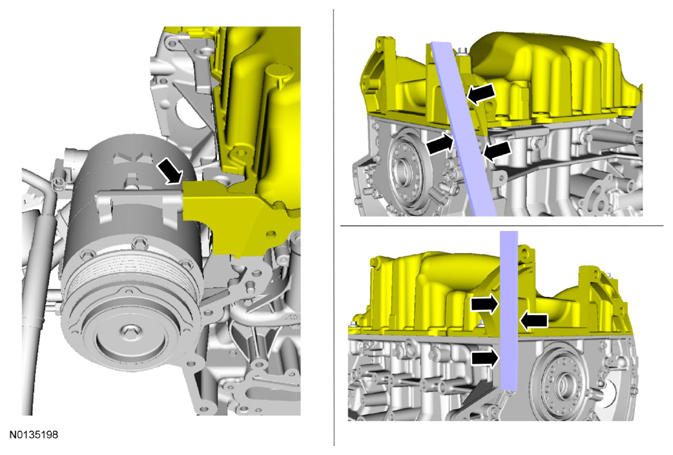

  35. Align the oil pan to the cylinder block and the A/C compressor.
    • Position the oil pan so the mounting boss is against the A/C compressor and using a straightedge, align the oil pan flush with the rear of the cylinder block at the 2 areas shown in illustration.
      G08622322

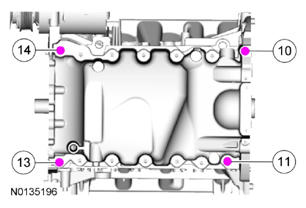

  36. Tighten bolts 10, 11, 13 and 14 in the sequence shown in illustration, to 3 Nm (27 lb-in).
    G08622323

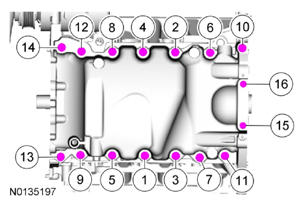

  37. Install the remaining oil pan bolts. Tighten all the oil pan bolts in the sequence shown in illustration.
    • Stage 1: Tighten the large bolts (1-14) to 24 Nm (18 lb-ft).
    • Stage 2: Tighten the small bolts (15 and 16) to 10 Nm (89 lb-in).
      G08622324

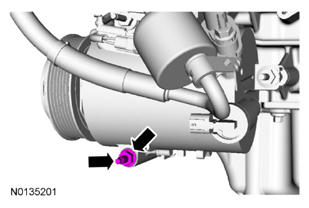

  38. Install the A/C compressor mounting stud and nut.
    • Tighten the stud to 9 Nm (80 lb-in) and the nut to 25 Nm (18 lb-ft).
      G08622325

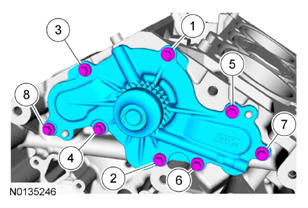

  39. Install the coolant pump and the 8 bolts. Tighten in the sequence shown in illustration in 2 stages:
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G08622326

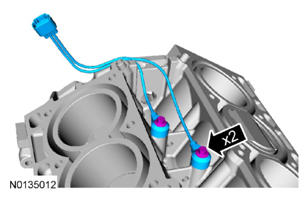

  40. Install the KS and the 2 bolts.
    • Tighten to 20 Nm (177 lb-in).
      G08622222
  41. NOTE: Apply clean engine coolant to the O-ring seal prior to installation.

    Using a new O-ring seal, install the coolant inlet tube and thermostat assembly.

    G08622221

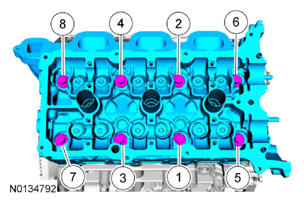

  42. Install a new gasket, the RH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
    • Stage 3: Tighten 90 degrees.
    • Stage 4: Tighten 90 degrees.
    • Stage 5: Tighten 45 degrees.
      G08622329

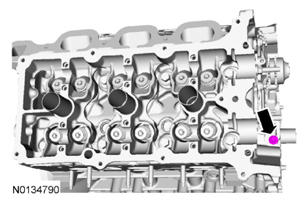

  43. Install the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08622330
  44. Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
    • Stage 3: Tighten 90 degrees.
    • Stage 4: Tighten 90 degrees.
    • Stage 5: Tighten 45 degrees.
      G08029366
  45. Install the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08029367
  46. NOTE: The valve tappets must be installed in their original positions.
    NOTE: Coat the valve tappets with clean engine oil prior to installation.
    NOTE: LH shown in illustration, RH similar.

    Install the valve tappets.

    G08029334

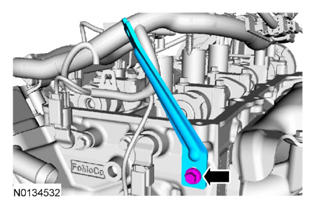

  47. NOTE: Align the bracket with the index mark made during removal.

    Install the upper intake manifold bracket and the bolt.

    • Tighten to 10 Nm (89 lb-in).
      G08622086
  48. Install the engine lifting eye and the 2 bolts.
    • Tighten to 24 Nm (18 lb-ft).
      G09086275
  49. Install the RH primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08029013

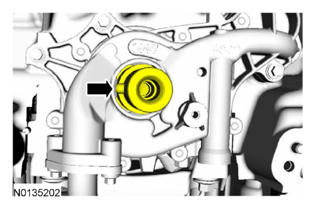

  50. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

    Position the crankshaft dowel pin in the 9 o'clock position.

    G08622337
  51. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Position the camshafts onto the RH cylinder head in the neutral position as shown in illustration.

    G07986807

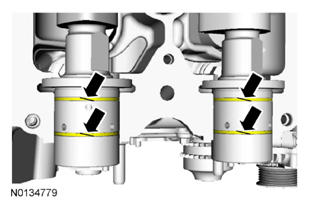

  52. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the 4 camshaft seals gaps as shown in illustration.

    G08622339

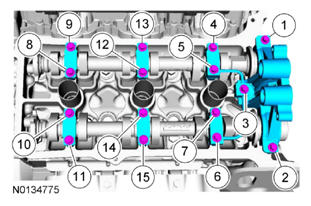

  53. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    Install the 6 camshaft caps, mega cap, valve train oil tube and the 15 bolts in the sequence shown in illustration.

    • Tighten to 8 Nm (71 lb-in) then an additional 45 degrees.
      G08622340

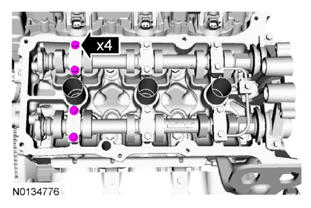

  54. Loosen the 4 camshaft caps bolts.
    G08622341

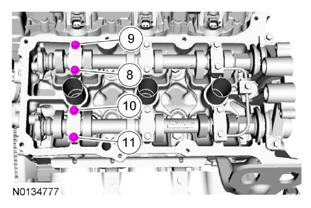

  55. Tighten the 4 camshaft caps bolts in the sequence shown in illustration.
    • Tighten bolts 8, 9, 10 and 11 to 8 Nm (71 lb-in) then an additional 45 degrees.
      G08622342
  56. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

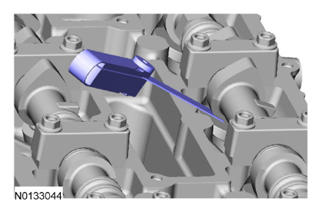

    Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet (s) of the correct size.

    G07790064
  57. Remove the 3 bolts and the RH valve train oil tube.
    G08028994
  58. Rotate the RH camshafts to the TDC  position as shown in illustration.
    G07986815
  59. NOTE: The 303-1248 will hold the camshafts in the TDC  position.

    Install 303-1248 onto the flats of the RH camshafts.

    G08028995
  60. Compress the RH secondary timing chain tensioner and install 303-1530 to retain the tensioner in the collapsed position.
    G08029037
  61. Assemble the RH VCT  assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
    • Align the colored links with the timing marks.
      G08029024
  62. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT  assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT  assemblies with the dowel pins in the camshafts.

    G08029012
  63. Install the 2 new RH VCT  bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.
      G08029026
  64. NOTE: The 2 VCT  oil control solenoids are removed for clarity.

    Compress the RH secondary timing chain tensioner and remove the Secondary Chain Hold Down.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.
      G08029010
  65. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Position the camshafts onto the LH cylinder head in the neutral position as shown in illustration.

    G07986758

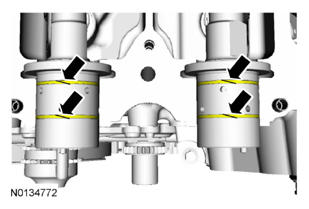

  66. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the 4 camshaft seals gaps as shown in illustration.

    G08622353
  67. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    Install the 6 camshaft caps, mega cap, valve train oil tube and the 15 bolts in the sequence shown in illustration.

    • Tighten to 8 Nm (71 lb-in).
      G08622354

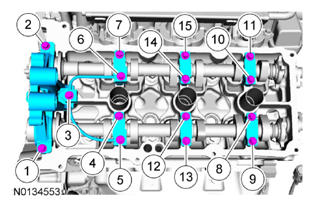

  68. Loosen the 4 camshaft caps bolts.
    G08622355

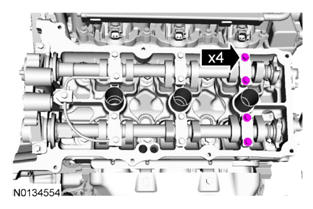

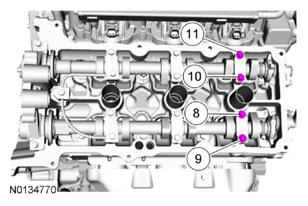

  69. Tighten the 4 camshaft caps bolts in the sequence shown in illustration.
    • Tighten bolts 8, 9, 10 and 11 to 8 Nm (71 lb-in) then an additional 45 degrees.
      G08622356
  70. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet (s) of the correct size.

    G07790064
  71. Remove the 3 bolts and the LH valve train oil tube.
    G08028992
  72. Rotate the LH camshafts to the TDC  position as shown in illustration.
    G07986766
  73. NOTE: The 303-1248 will hold the camshafts in the TDC  position.

    Install 303-1248 onto the flats of the LH camshafts.

    G08028993
  74. Compress the LH secondary timing chain tensioner and install the 303-1530 to retain the tensioner in the collapsed position.
    G08029042
  75. Assemble the 2 LH VCT  assemblies and the LH secondary timing chain.
    • Align the colored links with the timing marks.
      G08029032
  76. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the 2 LH VCT  assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT  assemblies with the dowel pins in the camshafts.

    G08029009
  77. Install the 2 new LH VCT  bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.
      G08029008
  78. NOTE: The 2 VCT  oil control solenoids are removed for clarity.

    Compress the LH secondary timing chain tensioner and remove the 303-1530.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.
      G08029007
  79. Install the LH upper primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08029006

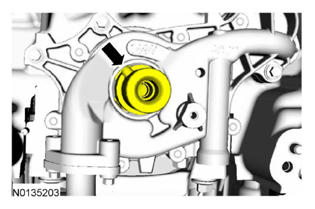

  80. Rotate the crankshaft clockwise 60 degrees to the TDC  position (crankshaft dowel pin at 11 o'clock).
    G08622367
  81. Install the crankshaft timing chain sprocket.
    G08029005
  82. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the primary timing chain with the colored links aligned with the timing marks on the VCT  assemblies and the crankshaft sprocket.

    G08029049
  83. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      G09066298

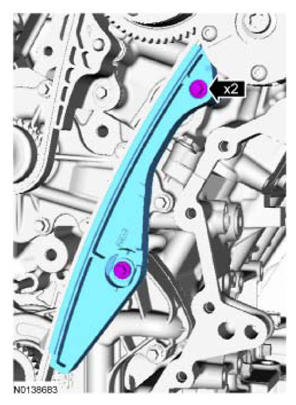

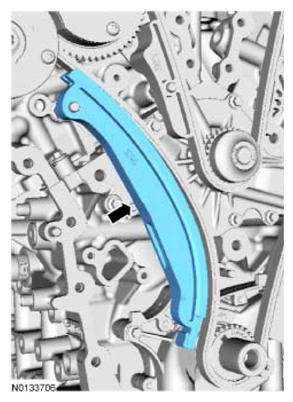

  84. Install the primary timing chain tensioner arm.
    G09065619
  85. Reset the primary timing chain tensioner.
    • Release the ratchet detent.
    • Using a soft-jawed vise, compress the ratchet plunger.
    • Align the hole in the ratchet plunger with the hole in the tensioner housing.
    • Install a suitable lockpin.
      G09087083

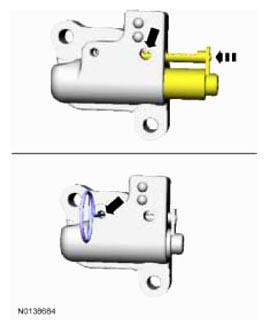

  86. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary tensioner and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.
      G08029053
  87. As a post-check, verify correct alignment of all timing marks.
    • There are 48 links in between the RH intake VCT  assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 35 links in between LH intake VCT  assembly colored link (2) and the 2 crankshaft sprocket links (3).
      G07986724
  88. NOTE: Do not use excessive force when installing the VCT  oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT  oil control solenoid, inspect the bore and VCT  oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Install the LH intake VCT  oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
      G09087086
  89. NOTE: Do not use excessive force when installing the VCT  oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT  oil control solenoid, inspect the bore and VCT  oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
    NOTE: A slight twisting motion will aid in the installation of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Install the RH intake VCT  oil control solenoid and the bolt.

    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
      G08029003
  90. Remove the RH 303-1248.
    G08028995
  91. Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G08028994
  92. Remove the LH 303-1248.
    G08028993
  93. Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G08028992
  94. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces of engine block, cylinder heads, and oil pan. These tools can cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder heads, the cylinder block and the oil pan in the following sequence.

    • Remove any large deposits of silicone or gasket material.
    • Apply Motorcraft® Silicone Gasket Remover and allow to set for several minutes.
    • Remove the Motorcraft® Silicone Gasket Remover. A second application of Motorcraft® Silicone Gasket Remover may be required if residual traces of silicone or gasket material remain.
    • Apply Motorcraft® Metal Surface Prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

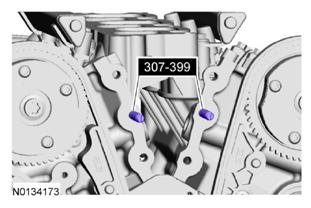

  95. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install 307-399.

    G08621671

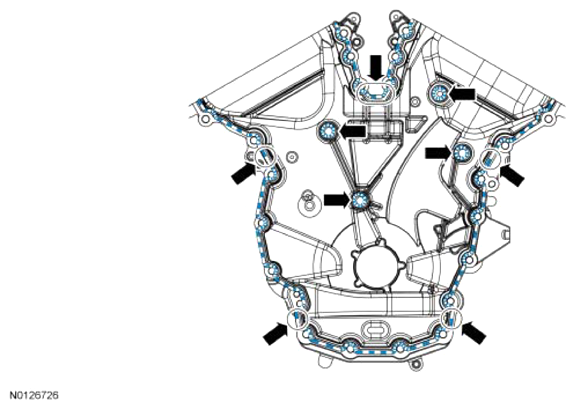

  96. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use Motorcraft® Silicone Gasket Remover and Motorcraft® Metal Surface Prep. Failure to follow this procedure can cause future oil leakage.

    Apply a 3 mm (0.1181 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the front cover.

    • Apply a 5.5 mm (0.22 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.
      G08028973

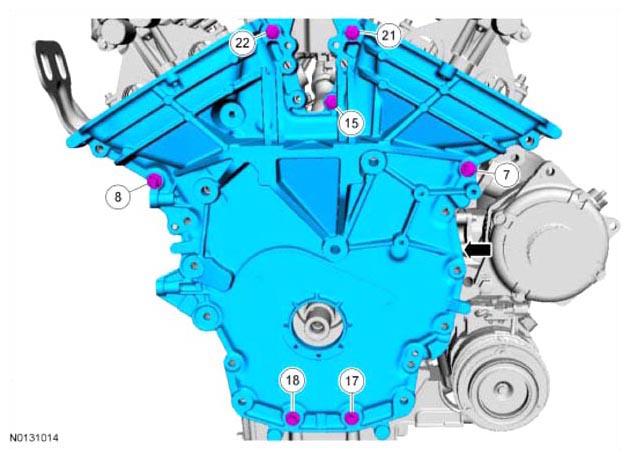

  97. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22.

    • Tighten in sequence shown in illustration to 3 Nm (27 lb-in).
      G08028974

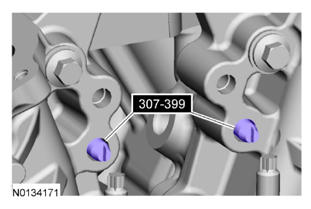

  98. Remove 307-399.
    G08621674
  99. Install the M6 engine front cover bolt. Do not tighten at this time.
    G08621669

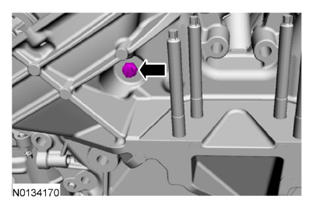

  100. Install the 3 upper M10 engine front cover bolts.
    • Do not tighten the bolts at this time.
      G08622386

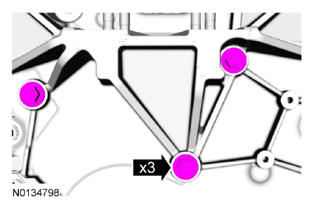

  101. Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts in the sequence shown in illustration in 7 stages.
    • Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in).
    • Stage 2: Tighten bolts 23 thru 25 to 15 Nm (133 lb-in).
    • Stage 3: Tighten bolt 26 to 10 Nm (89 lb-in).
    • Stage 4: Loosen bolt 26 one full turn.
    • Stage 5: Tighten bolts 23 thru 25 to 30 Nm (22 lb-ft) plus an additional 90 degrees.
    • Stage 6: Tighten bolts 1 thru 22 to 20 Nm (177 lb-in) plus an additional 45 degrees.
    • Stage 7: Tighten bolt 26 to 10 Nm (89 lb-in) plus an additional 45 degrees.
      G08028979
  102. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using 303-1247/2 and 205-153 T80T-4000-W install the new spark plug tube seal(s).

    G08028929
  103. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using 205-142 T80T-4000-J and 205-153 T80T-4000-W install the new VCT  seal(s).

    G08028930
  104. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use Motorcraft® Silicone Gasket Remover and Motorcraft® Metal Surface Prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.315 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-Right Hand (RH) cylinder head joints.

    G08028931
  105. Using a new gasket, install the RH valve cover and tighten the 3 bolts and 8 stud bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      G08028932
  106. Make sure the VCT  seals in the valve cover are below the top of the VCT  oil control solenoid electrical connector or the VCT  seal may leak oil.
    G08028915
  107. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.

    Install the 3 RH coil-on-plugs and the 3 bolts.

    • Tighten to 7 Nm (62 lb-in).
      G08621606

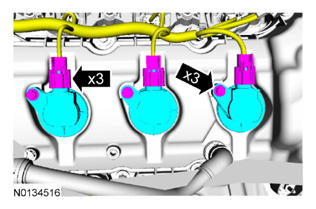

  108. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using 303-1247/2 and 205-153 T80T-4000-W install the new spark plug tube seal(s).

    G08028911
  109. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using 205-142 T80T-4000-J and 205-153 T80T-4000-W install the new VCT  seal(s).

    G08028912
  110. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use Motorcraft® Silicone Gasket Remover and Motorcraft® Metal Surface Prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.315 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-Left Hand (LH) cylinder head joints.

    G08028913

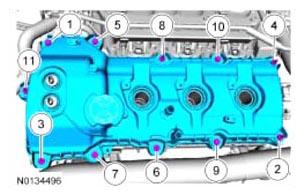

  111. Using a new gasket, install the LH valve cover and tighten the 4 bolts and 7 stud bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      G08028914
  112. Make sure the VCT  seals in the valve cover are below the top of the VCT  oil control solenoid electrical connector or the VCT  seal may leak oil.
    G08028915

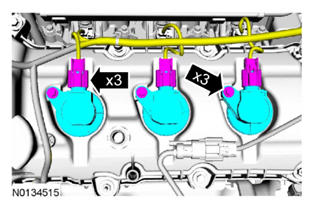

  113. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.

    Install the 3 LH coil-on-plugs and the 3 bolts.

    • Tighten to 7 Nm (62 lb-in).
      G08621585

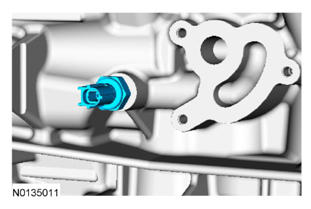

  114. NOTE: Apply Thread Sealant with PTFE to the EOP switch threads.

    Install the EOP switch.

    • Tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.
      G08622186
  115. NOTE: Oil filter adapter with oil cooler shown in illustration, oil filter adapter without oil cooler similar.

    Using a new gasket, install the oil filter adapter and the 3 bolts.

    • Tighten to 10 Nm (89 lb-in) plus an additional 45 degrees.
      G08029501

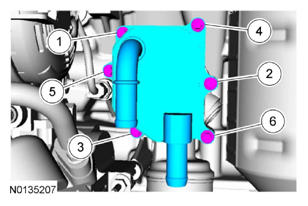

  116. NOTE: A new oil cooler must be installed or severe damage to the engine may occur.

    If equipped, install a new oil cooler, new gaskets and the 6 bolts.

    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      G08622410

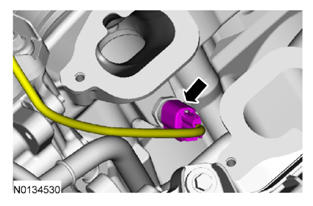

  117. Install and connect the CHT  sensor jumper harness.
    G08622089

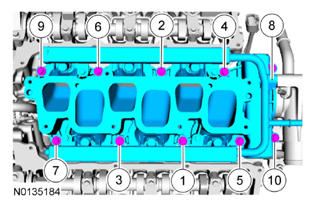

  118. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Using new intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.

    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
      G08622390
  119. Install the 2 thermostat housing-to-lower intake manifold bolts.
    • Tighten to 10 Nm (89 lb-in).
      G08029360

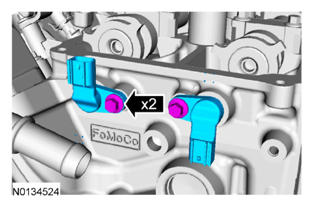

  120. Install the 2 bolts and the 2 LH CMP sensors.
    • Tighten to 10 Nm (89 lb-in).
      G08622077
  121. Install the 2 bolts and the 2 RH CMP sensors.
    • Tighten to 10 Nm (89 lb-in).
      G08029346
  122. Install the cover and the pin-type retainer.
    G08622179

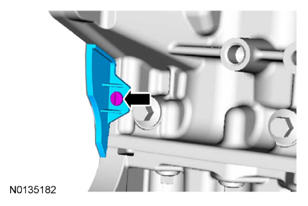

  123. Install the LH cylinder block drain plug.
    • Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.
      G08029358

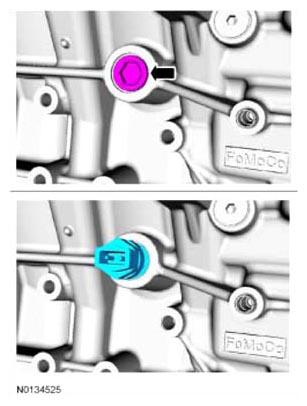

  124. If equipped, install the block heater wiring harness onto the engine.
    • Stage 1: Tighten the cylinder block drain plug to 10 Nm (89 lb-in) plus an additional 180 degrees.
    • Stage 2: Tighten the block heater to 40 Nm (30 lb-ft).
      G08029359
  125. Install 6 new LH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).
      G08029374
  126. Using a new gasket, install the LH catalytic converter and 3 new lower LH catalytic converter manifold-to-cylinder head nuts. Tighten in 2 stages in the sequence shown in illustration:
    • Stage 1: Tighten the 3 lower LH catalytic converter manifold-to-cylinder head nuts to 25 Nm (18 lb-ft).
    • Stage 2: Install the 3 new upper nuts and tighten the upper LH catalytic converter manifold-to-cylinder head nuts to 25 Nm (18 lb-ft).
      G08029356
  127. Install the LH exhaust heat shield and the 3 bolts.
    • Tighten to 12 Nm (106 lb-in).
      G09087124
  128. NOTE: Apply High Temperature Nickel Anti-Seize Lubricant to the threads of the HO2S  prior to installing.

    Install the LH HO2S  .

    • Tighten to 48 Nm (35 lb-ft).
      G08029354

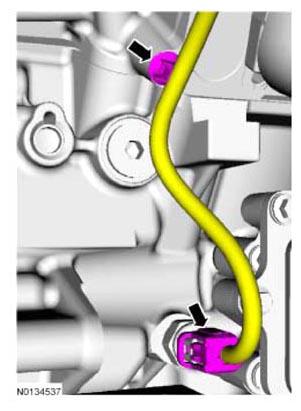

  129. Connect the EOP switch electrical connector and the wiring harness pin-type retainer.
    G08029353
  130. Install the generator stud, generator and the nut and bolt.
    • Tighten the stud to 8 Nm (71 lb-in).
    • Tighten the nut and bolt to 47 Nm (35 lb-ft).
      G08029352
  131. Install the CKP sensor and install the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08622161

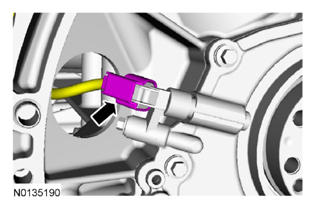

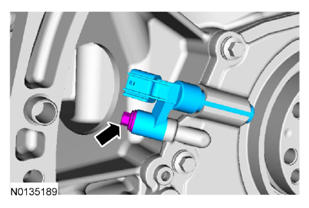

  132. Connect the CKP sensor electrical connector.
    G08622160
  133. Install the wiring harness grommet.
    G08622159

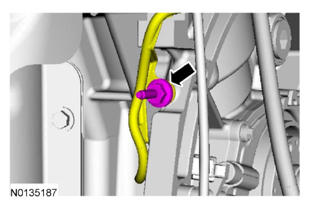

  134. Install the wiring harness retainer stud bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08622158

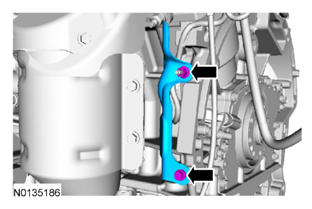

  135. Install the heat shield, the nut and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08622157

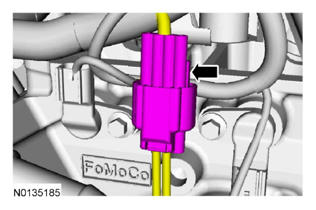

  136. Connect the KS electrical connector.
    G08622154

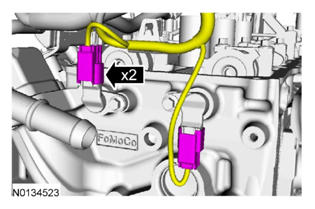

  137. Connect the 2 RH CMP sensor electrical connectors.
    G08622076

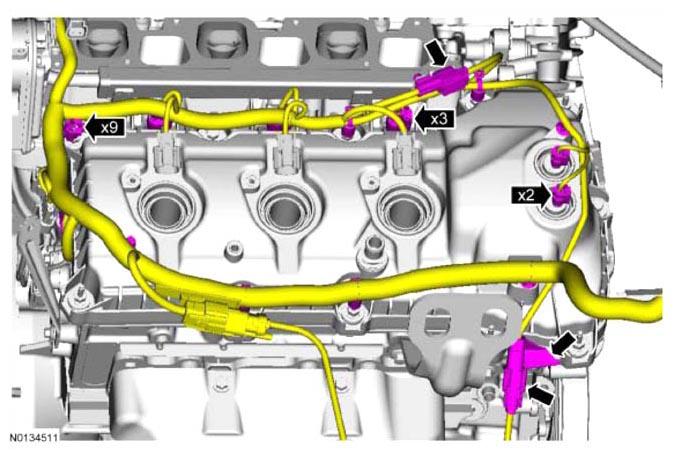

  138. Install the engine wiring harness to the RH valve cover.
    • Position the wiring harness and attach the 9 wiring harness retainers to the RH valve cover and stud bolts.
    • Connect the CHT  sensor wiring harness jumper electrical connector.
    • Connect the 3 fuel injector electrical connectors.
    • Connect and attach the RH CMS  electrical connector.
    • Connect the 2 VCT  oil control solenoid electrical connectors.
      G08028925
  139. Install the PCV  crankcase vent tube.
    G08028924

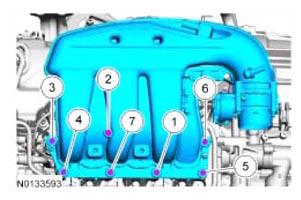

  140. Using a new gasket, install the intake manifold and the 7 bolts.
    • Tighten in the sequence shown in illustration in 2 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.
      G08028885
  141. Install the upper intake manifold support bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08028883
  142. Attach the 2 coolant tube retainers to the upper intake manifold.
    G08028882
  143. Connect the crankcase ventilation hose to the upper intake manifold.
    G09086120
  144. Connect the EVAP  vapor tube to the EVAP  canister purge valve. REFER to QUICK CONNECT COUPLING .
    • Attach the EVAP  vapor tube to the 2 retainers.
      G08028880
  145. Connect the EVAP  canister purge valve and throttle body electrical connectors.
    • Attach the wiring harness pin-type retainer to the upper intake manifold.
      G08028879
  146. Install the wiring harness retainer to the rear of the LH cylinder head.
    G08029347

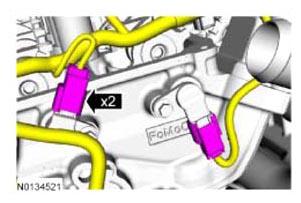

  147. Connect the 2 LH CMP sensor electrical connectors.
    G08029345

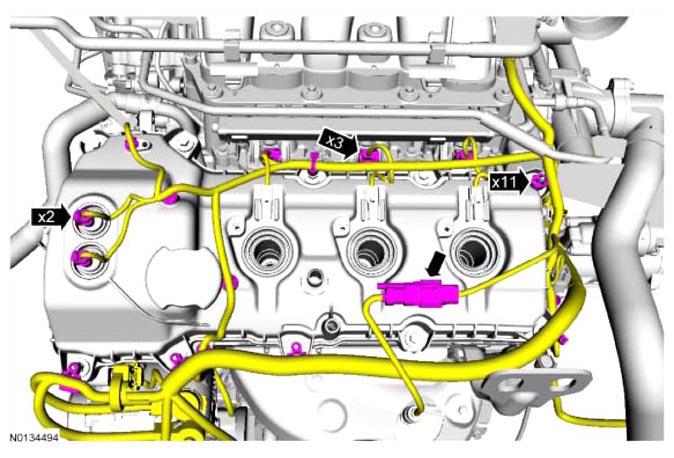

  148. Install the engine wiring harness to the LH valve cover.
    • Position the wiring harness and attach the 11 wiring harness retainers to the LH valve cover and stud bolts.
    • Connect the 3 fuel injector electrical connectors.
    • Connect and attach the LH HO2S  electrical connector.
    • Connect the 2 VCT  oil control solenoid electrical connectors.
      G08028907

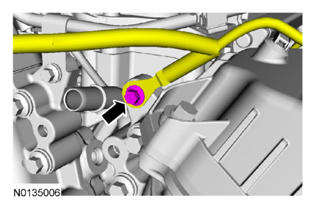

  149. Position the wire harness ground to the engine front cover and install the bolt.
    • Tighten to 10 Nm (89 lb-in).
      G08622023
  150. Install the oil level indicator.
    G08028905

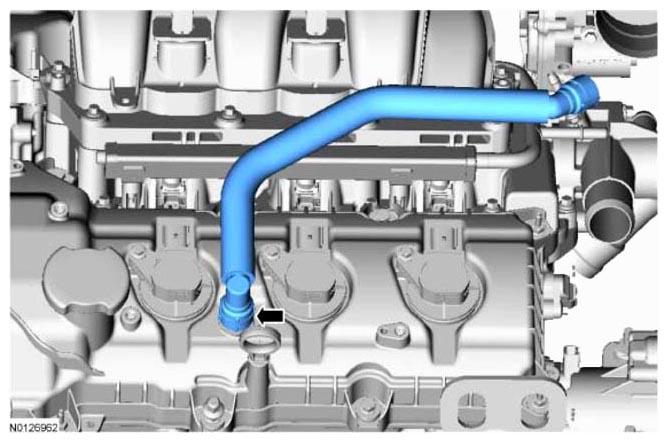

  151. Install the crankcase vent tube. REFER to QUICK CONNECT COUPLING .
    G09087148
  152. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

    Using the 303-102 T74P-6316-B and 303-1251, install a new crankshaft front seal.

    G09087149
  153. NOTE: Lubricate the crankshaft front seal inner lip with clean engine oil.
    NOTE: Lubricate the outside diameter sealing surfaces with clean engine oil.

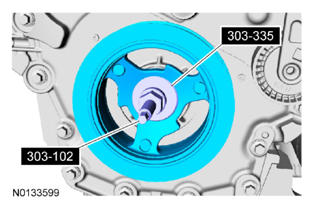

    Using the 303-102 T74P-6316-B and 303-335 T88T-6701-A, install the crankshaft pulley.

    G08621627
  154. Using the 303-D055 D85L-6000-A, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.
      G09087151

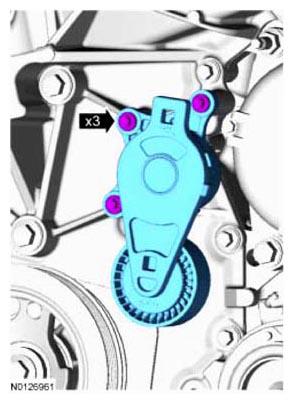

  155. Install the accessory drive belt tensioner and the 3 bolts.
    • Tighten to 11 Nm (97 lb-in).
      G09087152
  156. If equipped, position the block heater wiring harness onto the engine and attach all of the harness retainers.
    • Connect the block heater electrical connector.
      G08029344
  157. If equipped, install the block heater heat shield.
    G08029343

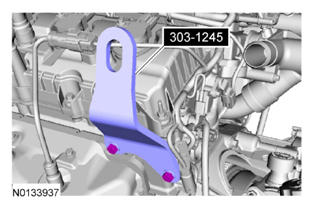

  158. Install 303-1245 on the LH cylinder head.
    G08621934

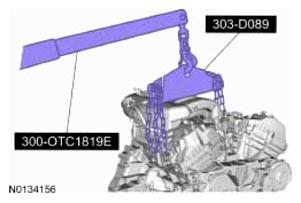

  159. Using 300-OTC1819E and 303-D089 D93P-6001-A3, remove the engine from the stand.
    G09087156
  160. NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

    If equipped with a cast aluminum crankshaft rear seal retainer plate (early build), position 303-1250 onto the end of the crankshaft and slide a new crankshaft rear seal onto 303-1250.

    G08029524
  161. If equipped with a cast aluminum crankshaft rear seal retainer plate (early build), using the 303-1250 and 205-153 T80T-4000-W, install the new crankshaft rear seal.
    G08029525
  162. Install the crankshaft sensor ring.
    G08029522
  163. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

    Install the flexplate and the 8 bolts.

    • Tighten in the sequence shown in illustration to 80 Nm (59 lb-ft).
      G08621637
scientia non olet · About LEMON Manuals
