Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine is equipped with a cast aluminum (early build) or stamped steel (late build) crankshaft rear seal retainer plate. If the engine is equipped with a stamped steel plate, the seal and plate must be removed as an assembly and discarded.

NOTE: Cast aluminum (early build) shown in illustration crankshaft rear seal retainer plate, stamped steel (late build) crankshaft rear seal retainer plate is similar.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 cylinder block/oil pan joints.
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply a 3 mm (0.1181 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.
NOTE: If equipped with a cast aluminum crankshaft rear seal retainer plate, use the 2 oil pan bolts as handles during installation to avoid touching the sealant.

Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer. Tilt the seal retainer up and onto the rear of the cylinder block.
Install the rear seal retainer and the 8 bolts in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).
Install the 2 oil pan to crankshaft rear seal retainer bolts.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in) plus an additional 45 degrees.
NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

If equipped with a cast aluminum crankshaft rear seal retainer plate, position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.
If equipped with a cast aluminum crankshaft rear seal retainer plate, use 303-1250 and 205-153 T80T-4000-W to install the new crankshaft rear seal.

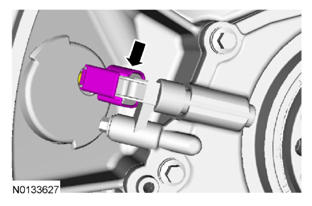

Install the CKP sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).

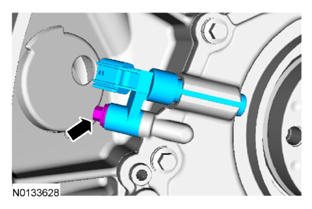

Connect the CKP sensor electrical connector.
Install the crank sensor ring.
Install the flexplate. Refer to FLEXPLATE .
