Engine Oil Pressure (EOP) Switch: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING
- Loosen the 4 retainers and remove the underbody shield.
-

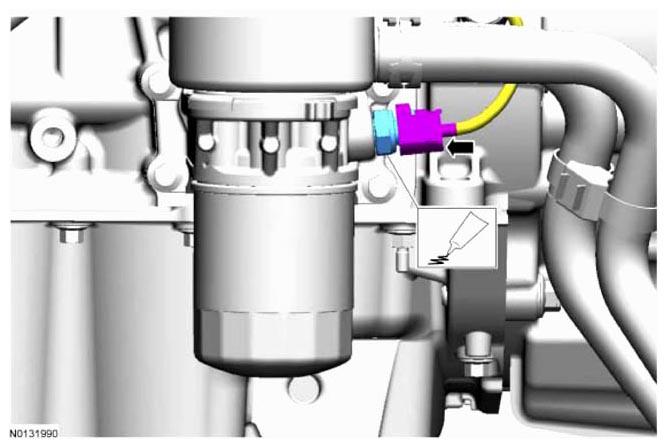

NOTE: Early build shown in illustration, late build similar.NOTE: Apply thread sealant to the EOP switch threads.
Disconnect the EOP switch electrical connector.
