Evaporative Emission (EVAP) Tube Quick Connect Fitting, Fuel Supply Tube Quick Connect Fitting, Throttle Body (TB), PCV Tube and Electrical Connectors
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

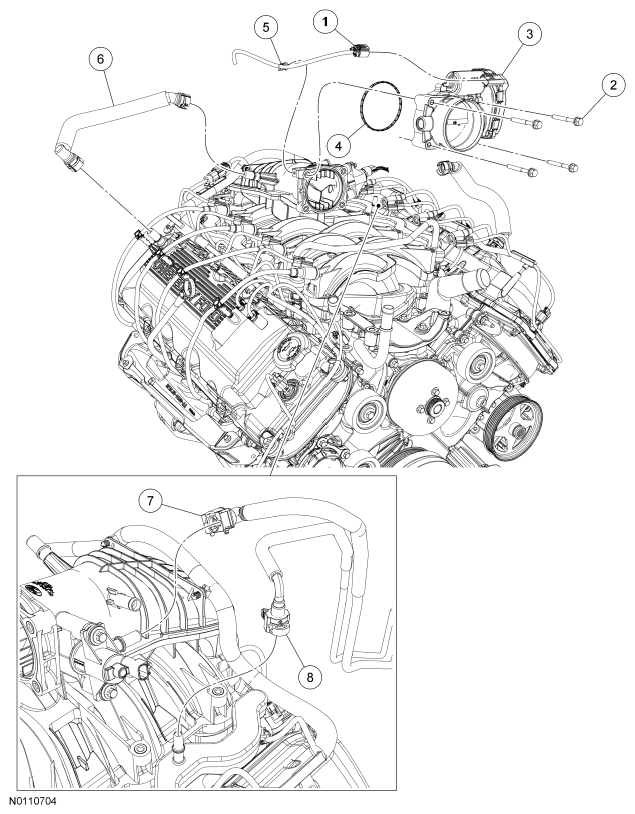

Fig 1: Identifying Evaporative Emission Tube Quick Connect Fitting, Fuel Supply Tube Quick Connect Fitting And Throttle Body
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electronic Throttle Control (ETC) electrical connector (part of 12C508) |
| 2 | N709168 | Throttle Body (TB) bolt (4 required) |
| 3 | 9F991 | TB |
| 4 | 9E936 | TB O-ring seal |
| 5 | - | ETC wiring harness retainer (part of 12C508) |
| 6 | 6A664 | PCV tube |
| 7 | - | Evaporative Emission (EVAP) tube quick connect coupling |
| 8 | - | Fuel supply tube quick connect coupling |
