Coolant Pump Pulley, Power Steering Pump and Front Oil Pan Bolts
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

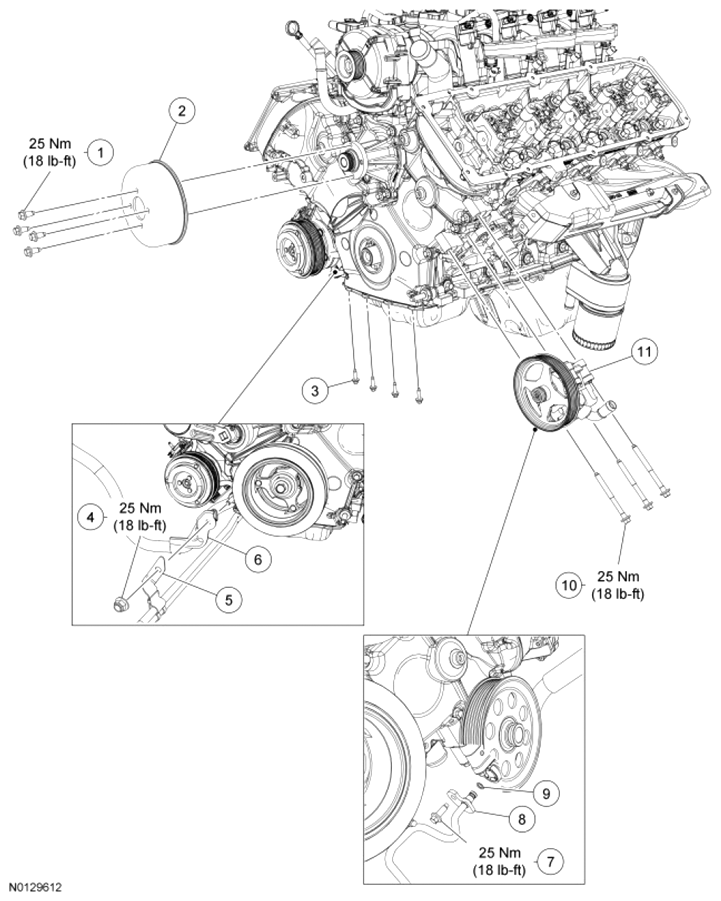

Fig 1: Coolant Pump Pulley, Power Steering Pump And Front Oil Pan Bolts Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | N806282 | Coolant pump pulley bolt (4 required) |
| 2 | 8A528 | Coolant pump pulley |
| 3 | W701605 | Oil pan bolt (4 required) |
| 4 | W707014 | Transmission cooler tube bracket nut |
| 5 | - | Transmission cooler tube support bracket (part of 7R081) |
| 6 | - | Battery cable support bracket (part of 14301) |
| 7 | W714824 | Power steering pressure tube retainer bolt |
| 8 | 3A719 | Power steering pressure tube |
| 9 | 388898 | O-ring seal (2 required) |
| 10 | W706447 | Power steering pump bolts (3 required) |
| 11 | 3A696 | Power steering pump |
