Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

Clean and inspect the mating surface.
NOTE: If the rear crankshaft seal retaining plate is not secured within 5 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 5 minutes, whichever is longer. Failure to follow this procedure may cause future oil leaks.

Apply a bead of silicone gasket and sealant around the groove along the rear of crankshaft rear seal retainer plate sealing surface.

Fig 1: Identifying Rear Of Crankshaft Rear Seal Retainer Plate Sealing Surface Bead Of Silicone Gasket And Sealant Applying Area
Courtesy of FORD MOTOR CO.
Install the crankshaft rear seal retainer plate and the 8 bolts in the sequence shown in illustration, in 2 stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.

  Fig 2: Identifying Crankshaft Rear Seal Retainer Plate Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.

Using the Rear Main Seal Installer and Handle, install a new crankshaft rear seal.

Fig 3: Installing Crankshaft Rear Seal Using Rear Main Seal Installer And Handle
Courtesy of FORD MOTOR CO.
NOTE: The Crankshaft Position (CKP) sensor must be positioned into the fitting on the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

Position the CKP sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).

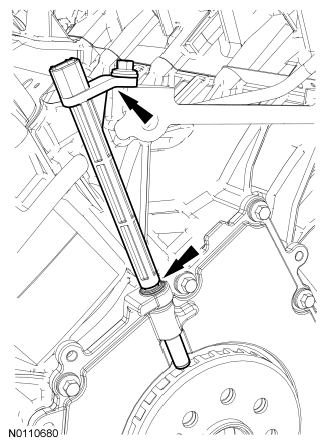

  Fig 4: Locating CKP Sensor Bolt
  Courtesy of FORD MOTOR CO.
Connect the CKP sensor electrical connector.
NOTE: Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be discarded.

With the inset hole on the crankshaft ignition pulse ring aligned with the inset hole on the crankshaft flange, install the crankshaft ignition pulse ring.

Fig 5: Locating Crankshaft Ignition Pulse Ring Inset Hole
Courtesy of FORD MOTOR CO.
Install the engine rear cover plate.
Install the flexplate or flywheel. For additional information, refer to FLEXPLATE if equipped with an automatic transmission, or FLYWHEEL if equipped with a manual transmission.
Using the Engine Support Bar and Engine Support Bracket, raise the engine assembly.

Fig 6: Aligning Engine Support Insulator Studs Using Engine Support Bar And Engine Support Bracket
Courtesy of FORD MOTOR CO.
Install the oil pan. For additional information, refer to OIL PAN .
Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
