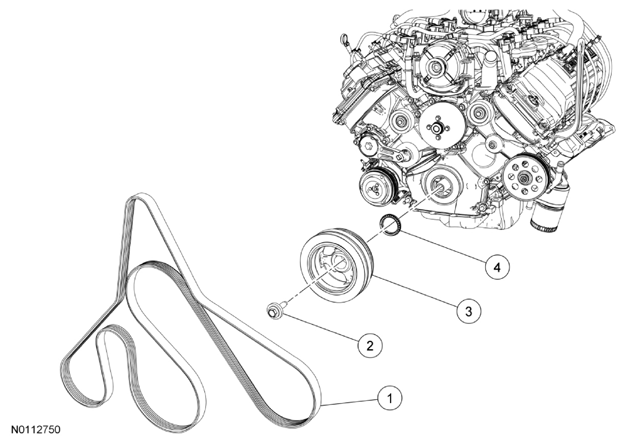

Crankshaft Pulley and Crankshaft Front Seal - Exploded View
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | 6A340 | Crankshaft pulley bolt and washer |
| 3 | 6316 | Crankshaft pulley |
| 4 | 6700 | Crankshaft front seal |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
