Cylinder Head: Notes
WARNING: This page is about a different car, the 2013 Ford F-350 Super Duty and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

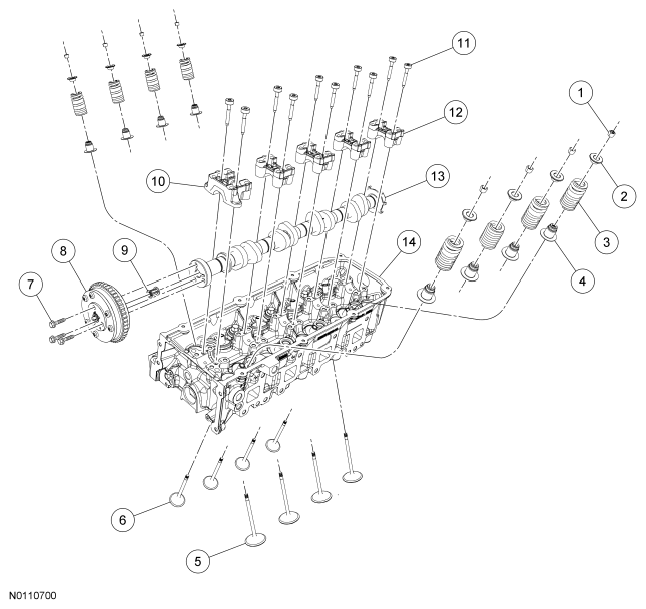

Intake and Exhaust Valves, Valve Springs, Valve Spring Retainer Keys and Retainers, Camshaft Phaser and Sprocket, VCT System Oil Filter, Camshaft Bearing Caps and Camshaft
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Valve spring retainer key (16 required) |
| 2 | 6514 | Valve spring retainer (8 required) |
| 3 | 6513 | Valve spring (8 required) |
| 4 | 6A517 | Valve seal (8 required) |
| 5 | 6505 | Exhaust valve (4 required) |
| 6 | 6507 | Intake valve (4 required) |
| 7 | W712998 | Camshaft phaser and sprocket bolt (3 required) |
| 8 | 6C524 | Camshaft phaser and sprocket |
| 9 | 6C683 | Variable Camshaft Timing (VCT) system oil filter |
| 10 | 6B280 | Camshaft front bearing cap |
| 11 | W714203 | Camshaft bearing cap bolt (10 required) |
| 12 | 6B284 | Camshaft bearing cap (4 required) |
| 13 | 6A274 | Camshaft |
| 14 | 6050 | Cylinder head |
