Steering Wheel Symbols
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

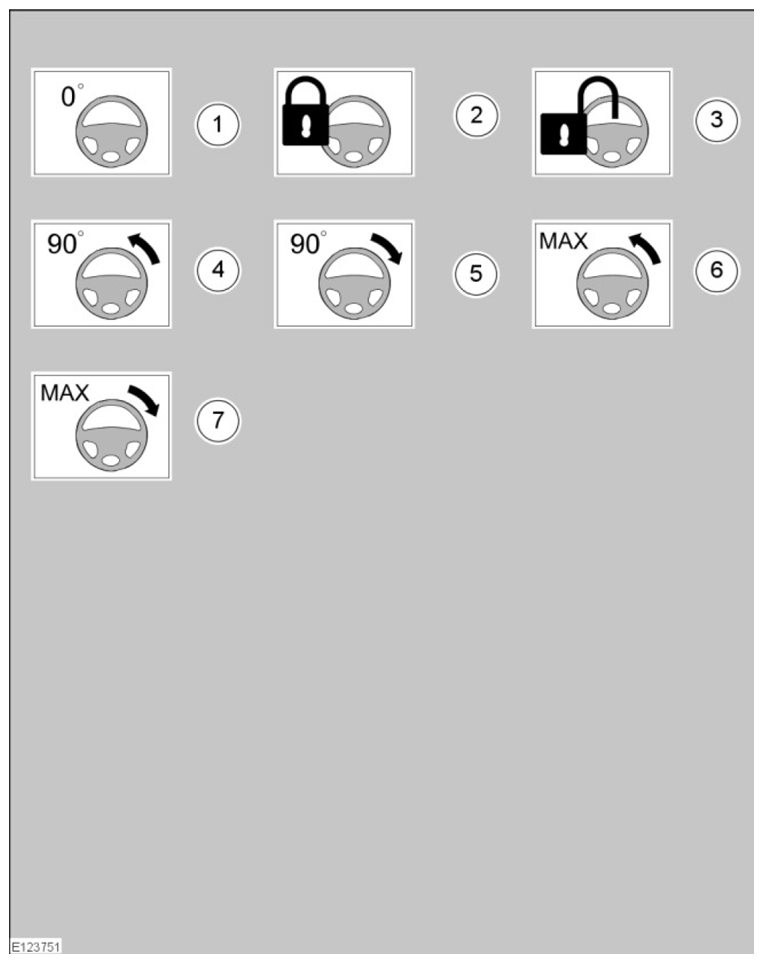

Steering wheel symbols are used to provide further information to a required steering wheel position or steering column lock status.
| Item | Description |
|---|---|
| 1 | Steering wheel in straight ahead position |
| 2 | Steering column lock locked |
| 3 | Steering column lock unlocked |
| 4 | Turn the steering wheel to the 90° left position |
| 5 | Turn the steering wheel to the 90° right position |
| 6 | Turn the steering wheel to the left-hand end position |
| 7 | Turn the steering wheel to the right-hand end position |

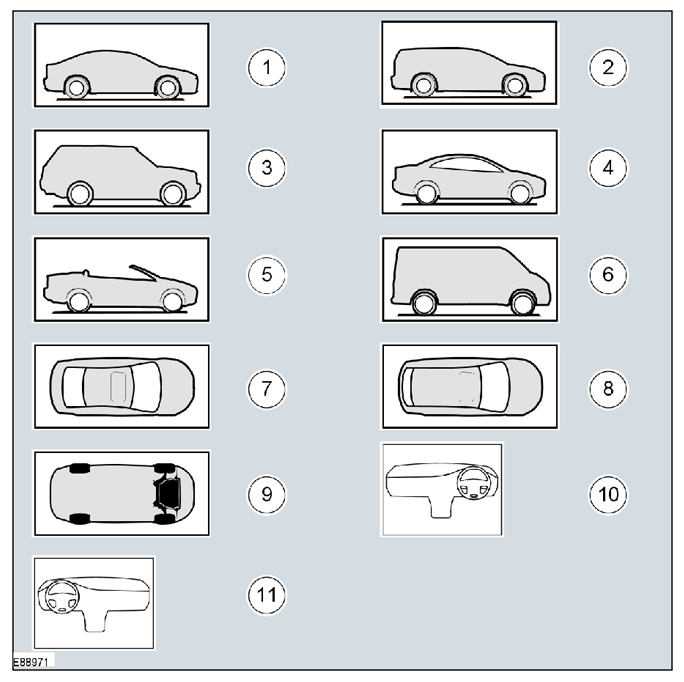

| Item | Description |
|---|---|
| 1 | 3, 4, 5-door body style |
| 2 | Wagon body style |
| 3 | Sport utility vehicle body style |
| 4 | Coupe body style |
| 5 | Convertible body style |
| 6 | Van body style |
| 7 | 3, 4, 5-door body style - Top View |
| 8 | Wagon body style - Top View |
| 9 | Underbody view |
| 10 | Right-hand drive (RHD) vehicle |
| 11 | Left-hand drive (LHD) vehicle |
