Miscellaneous Symbols
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

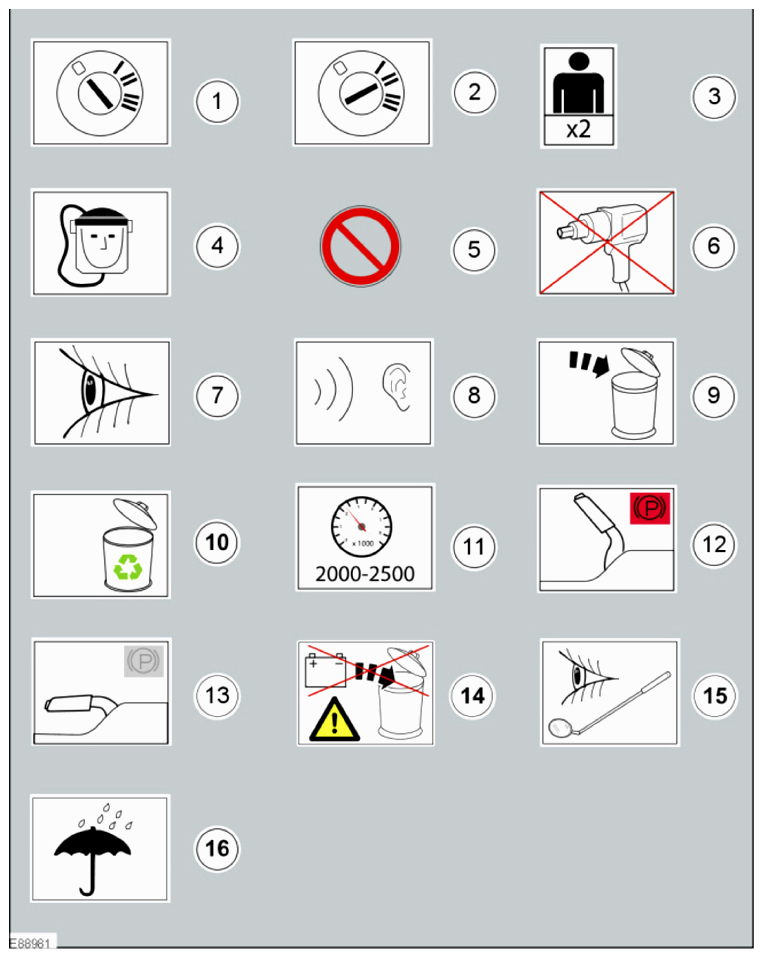

These symbols provide further information that is required to carry out a procedure step.
| Item | Description |
|---|---|
| 1 | Set the ignition switch to the 0 position |
| 2 | Set the ignition switch to the II position |
| 3 | The procedure step requires the aid of the specified number of supporting technicians |
| 4 | Self contained breathing apparatus |
| 5 | General prohibition used in combination with another symbol |
| 6 | Do not use power tools |
| 7 | Visual check |
| 8 | Noise check |
| 9 | Dispose the specified component |
| 10 | Replaced by item 9 (Dispose the specified component) |
| 11 | Set the engine speed to the specified value |
| 12 | Fully apply the parking brake lever |
| 13 | Fully release the parking brake lever |
| 14 | Do not dispose of batteries into the waste bin |
| 15 | Visual check using a mirror |
| 16 | Area/component must be dry |
