Cylinder Head: Assembly

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve.
    G09070164
  2. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

    Special Tool(s): Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH).

    Install a new valve stem seal.

    G09070165

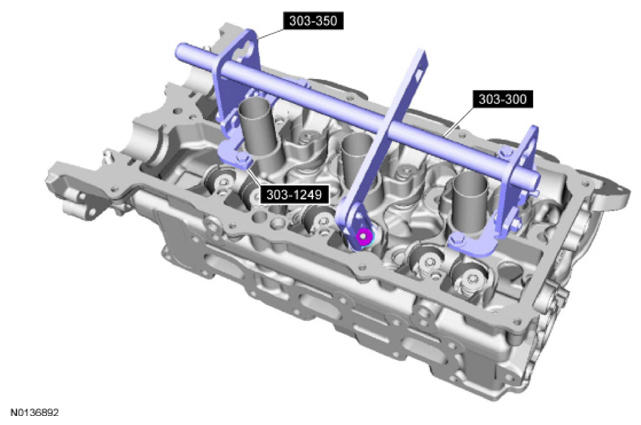

  3. Special Tool(s): Compressors, Valve Spring 303-300 (T87C-6565-A), 303-350 (T89P-6565-A) and 303-470 (T94P-6510-CH).

    Install the valve spring, retainer and key.

    G09070166
  4. Repeat the above steps for each valve.
  5. Install the timing chain guide pin and/or timing chain tensioner arm pin and tighten in 2 stages.
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten an additional 60 degrees.
      G09070167
  6. Install the turbocharger oil supply quick connect fitting.
    • Tighten to 8 Nm (71 lb-in) plus an additional 540 degrees.
      G09070168
  7. If equipped, install a new CHT  sensor.
    • Tighten to 10 Nm (89 lb-in).
      G09070169
