Engine Upper - LH Cylinder Head
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

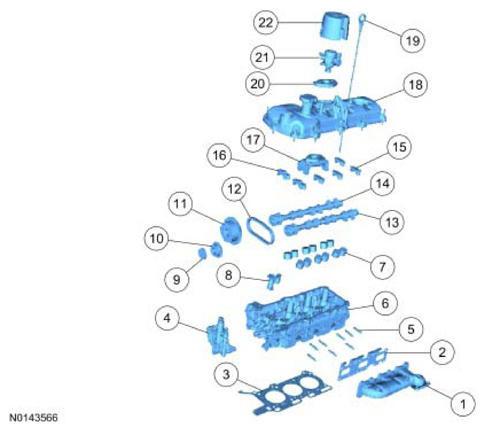

| Item | Part Number | Description |
|---|---|---|
| 1 | 9429 | Exhaust manifold |
| 2 | 9448 | Exhaust manifold gasket |
| 3 | 6083 | LH cylinder head gasket |
| 4 | 6C261 | LH Variable Camshaft Timing (VCT) housing |
| 5 | W712244 | LH exhaust manifold stud (8 required) |
| 6 | 6050 | LH cylinder head |
| 7 | 6500 | Valve tappet (12 required) |
| 8 | 6C271 | LH secondary timing chain tensioner |
| 9 | W710738 | LH exhaust camshaft sprocket washer |
| 10 | 6256 | LH exhaust camshaft sprocket |
| 11 | 6C524 | LH VCT assembly |
| 12 | 6C256 | LH secondary timing chain |
| 13 | 6A269 | LH exhaust camshaft |
| 14 | 6A267 | LH intake camshaft |
| 15 | 6A258 | LH camshaft cap (4 required) |
| 16 | 6B281 | LH camshaft cap (2 required) |
| 17 | 6B287 | LH camshaft cap |
| 18 | 6A505 | LH valve cover |
| 19 | 6750 | Oil level indicator |
| 20 | 9178 | High-pressure Fuel Pump (FP) mounting plate |
| 21 | 9D376 | High-pressure FP |
| 22 | 6N041 | Fuel injection pump noise insulator shield |
