Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

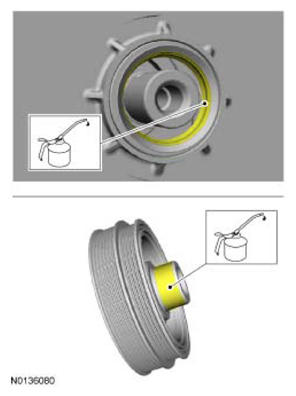

  1. Lubricate with clean engine oil.
    G09069390
  2. Special Tool(s): Installer, Front Cover Oil Seal 303-335 and Replacer, Crankshaft Vibration Damper 303-102 (T74P-6316-B).

    Install the crankshaft pulley.

    G09069391
  3. Install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.
      G09069392
  4. Install the accessory drive belt. Refer to ACCESSORY DRIVE BELT -- 3.5L GTDI .
  5. Install the underbody air duct and the 3 twist lock retainers.
    G09069393
  6. Install the RH splash shield. REFER to FENDER SPLASH SHIELD .
  7. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
