Oil Pan: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING .
  2. Remove the ACL  tray assembly and ACL  outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
  3. Remove the battery tray. REFER to BATTERY AND BATTERY TRAY - EXPLODED VIEW .
  4. Remove the oil level indicator.
    G07417523
  5. Detach the wiring harness retainer from the starter stud bolt and remove the starter stud bolt.
    G07997755
  6. Loosen the 3 upper bellhousing-to-engine bolts 5 mm (0.20 in).
    G07997756
  7. If equipped, remove the 3 twist-type retainers and remove the air duct from the subframe.
    G07430766
  8. Remove the exhaust Y-pipe. Refer to EXHAUST Y-PIPE - 3.5L TI-VCT .
  9. Remove the drain plug and drain the engine oil and re-install the drain plug.
    • Tighten to 27 Nm (20 lb-ft).
      G08621662
  10. Remove and discard the engine oil filter.
    G09066251
  11. Remove the transaxle support insulator - anti-roll:

    For FWD vehicles, REFER to TRANSMISSION SUPPORT INSULATOR -- ANTI-ROLL FWD .

    For AWD vehicles, REFER to TRANSMISSION SUPPORT INSULATOR -- ANTI-ROLL AWD .

  12. If equipped with AWD, remove the catalytic converter - RH manifold. REFER to CATALYTIC CONVERTER - RH MANIFOLD .
  13. If equipped with AWD, remove the 5 PTU support bracket bolts and the PTU support bracket.
    G08029127
  14. NOTE: It may be necessary to roll the bottom of the engine back for the A/C compressor stud to clear the subframe.

    Remove the A/C compressor nut and stud.

    G07997759
  15. Loosen the 3 LH bellhousing-to-engine bolts 5 mm (0.20 in).
    G09066254
  16. NOTE: AWD vehicle shown in illustration, FWD similar. Parts removed from graphic for clarity.

    Loosen the RH engine-to-bellhousing bolt 5 mm (0.20 in).

    G07997773
  17. Remove the 2 fasteners and the inspection cover.
    G07998852
  18. Remove the 2 LH catalytic converter bracket nuts.
    G09066257
  19. Remove the 4 oil pan-to-bellhousing bolts and the LH catalytic converter bracket.
    G08621800

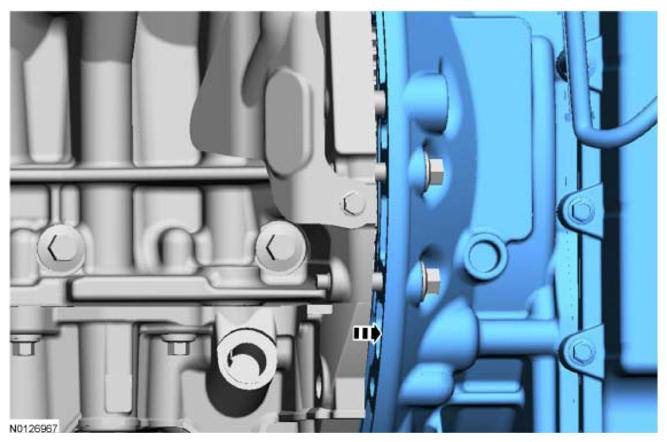

  20. Separate the engine and transaxle 5 mm (0.20 in).
    G09066259
  21. Remove the 4 lower engine front cover bolts.
    G08029442
  22. Remove the 16 oil pan bolts.
    G09066261
  23. Using a suitable pry tool, locate the pry pads and pry the oil pan loose and remove.
    G08621804
  24. NOTE: Only use a 3M Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    Clean the engine oil pan using a 3M Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm. Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

  25. NOTE: Do not use wire brushes, power abrasive discs or 3M Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder block and engine front cover in the following sequence.

    1. Remove any large deposits of silicone or gasket material.
    2. Apply silicone gasket remover and allow to set for several minutes.
    3. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply Motorcraft® Metal Surface Prep to remove any remaining traces of oil and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
