Engine - 2WD: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING , Lifting Points.
  2. Recover the A/C system. REFER to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  3. Remove the cowl panel. REFER to COWL PANEL .
  4. Release the fuel system pressure. REFER to FUEL SYSTEM PRESSURE RELEASE .
  5. Remove the engine ACL  assembly and ACL  outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
  6. Remove the battery tray. REFER to BATTERY AND BATTERY TRAY - EXPLODED VIEW .
  7. Remove the nut and disconnect the 2 battery feed cables from the positive battery terminal.
    G09066029
  8. Remove the retainer and the ground wire cable.
    G09066030
  9. Remove the retainer and the ground wire cable.
    G09066031
  10. Disconnect the engine wiring harness electrical connector.
    G09066032
  11. Remove the front wheels and tires. REFER to WHEEL AND TIRE .
  12. NOTE: RH shown in illustration, LH similar.

    Remove the 2 RH and 2 LH lower pin-type retainers from the engine splash shields and position the shields aside.

    G09066033
  13. Remove the accessory drive belt. REFER to ACCESSORY DRIVE BELT - 3.5L TI-VCT, 3.7L TI-VCT .
  14. Drain the cooling system. REFER to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

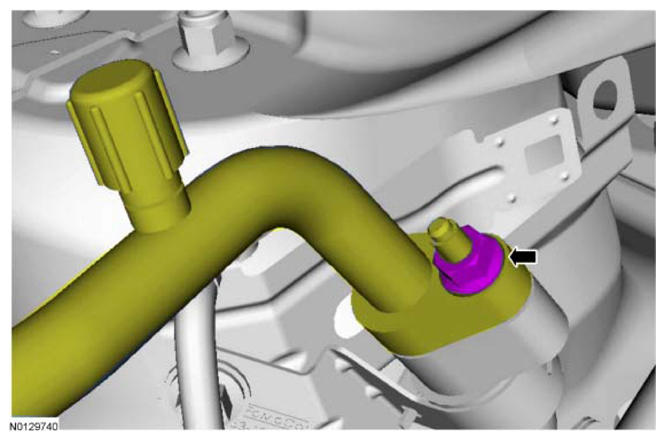

  15. Remove the nut and disconnect the A/C tube.
    • Discard the O-ring seal and gasket seal.
      G09066034
  16. Disconnect the A/C pressure switch electrical connector.
    G09066035
  17. Remove the nut and disconnect the A/C tube.
    • Discard the O-ring seal and gasket seal.
      G09066036
  18. Remove degas bottle. REFER to DEGAS BOTTLE .
  19. Disconnect the degas bottle coolant hose from the engine coolant tube.
    G09066037

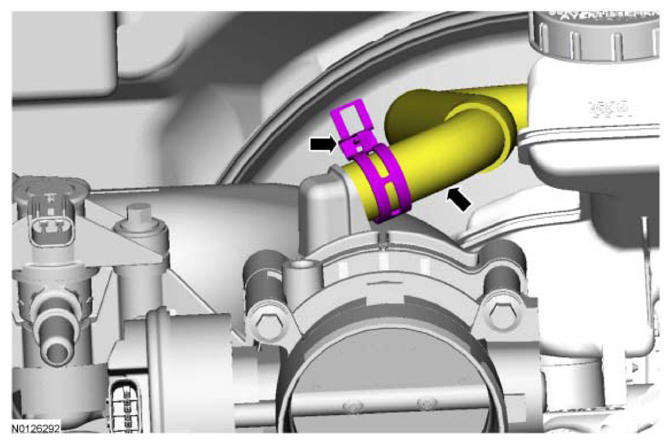

  20. Disconnect the brake booster vacuum hose from the upper intake manifold.
    G09066038
  21. Disconnect the EVAP  tube and the fuel supply tube quick connect coupling. REFER to QUICK CONNECT COUPLING .
    G09066039
  22. Disconnect the 2 PCM  electrical connectors.
    G09066040
  23. Disconnect the engine harness electrical connector.
    • Detach the wiring harness retainer.
      G09066041
  24. Remove the engine wiring harness retainer from the bulkhead.
    1. Push the wiring harness retainer tab in.
    2. Slide the wiring harness up and out of the bulkhead.
      G09066042
  25. Remove the bolt and ground wire from the RH shock tower.
    G09066043
  26. Disconnect the upper radiator hose, lower radiator hose and 2 heater hoses from the thermostat housing.
    G09066044
  27. Disconnect the transaxle control cable from the control lever.
    G09066045
  28. Disconnect the transaxle control cable from the shift cable bracket.
    G09066046
  29. If equipped, detach the engine block heater harness.

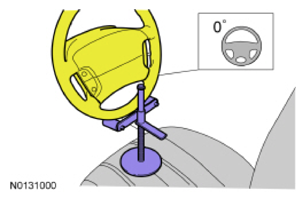

  30. NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).

    Using a suitable holding device, hold the steering wheel in the straight-ahead position.

    G09066047
  31. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring may occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to CLOCKSPRING , and CLOCKSPRING ADJUSTMENT .
    NOTE: Index-mark the steering column shaft position to the steering gear for reference during installation.

    Remove the bolt and disconnect the steering column shaft from the steering gear.

    • Discard the bolt.
      G09066048
  32. Remove the exhaust Y-pipe. For additional information, Refer to EXHAUST Y-PIPE - 3.5L TI-VCT .
  33. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
      G09066049
  34. Remove and discard the engine oil filter.
    G09066050
  35. Remove the 2 fasteners and the inspection cover.
    G09066051
  36. Remove and discard the 3 torque converter bolts.
    G09066052
  37. Remove the 4 oil pan-to-transaxle bolts.
    G09066053
  38. Disconnect the oil cooler coolant hoses.
    G09066054
  39. Unlatch the cooler hose retainer latch and pry up on the oil cooler hose retainer to release the retainer and remove it from the subframe.
    G09066055
  40. Remove the 2 secondary latches from the transmission fluid cooler tubes at the transmission fluid cooler thermal bypass valve.
    G09066056
  41. Using 307-569, disconnect the transmission fluid cooler tubes from the transmission fluid cooler thermal bypass valve.
    G09066057
  42. NOTE: LH shown in illustration, RH similar.

    Remove the bolt and the wheel speed sensor.

    G09066058
  43. NOTE: LH shown in illustration, RH similar.

    Remove and discard the upper stabilizer link nut.

    G09066059
  44. NOTE: Do not allow the brake caliper to hang from the brake flexible hose or damage to the hose may occur.
    NOTE: LH shown in illustration, RH similar.

    Remove the brake caliper guide pin bolts and calipers.

    • Support the calipers.
      G09066060
  45. NOTE: RH shown in illustration, LH similar.

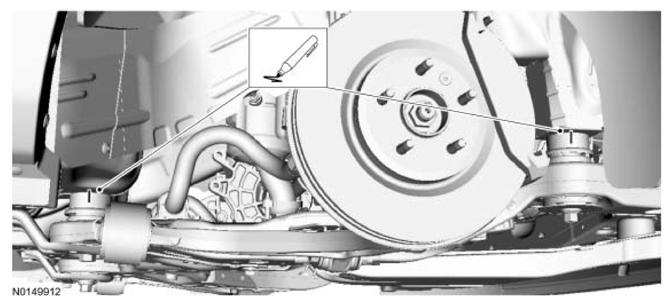

    Using a wax pencil, mark the relationship of the front and rear subframe to the underbody at the mounting locations on both side.

    G09066061
  46. NOTE: LH shown in illustration, RH similar.

    Remove the LH and RH halfshaft nuts.

    • Do not discard at this time.
      G09066062
  47. NOTE: LH shown in illustration, RH similar.

    Separate the LH and RH halfshaft from the wheel hubs.

    G09066063

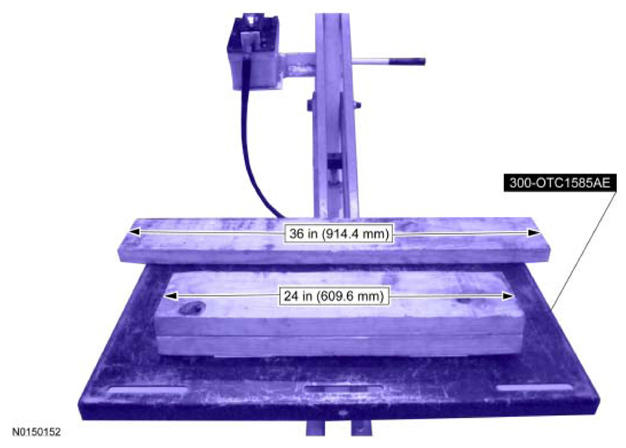

  48. Position a 2 x 6 board, 36 in (914.4 mm) in length and two 2 x 6 boards 24 in (609.6 mm) in length onto the powertrain lift.
    • Position the powertrain lift table with:
      • the long board towards the rear of the subframe.
      • the short boards under the engine and transmission.
      G09066064

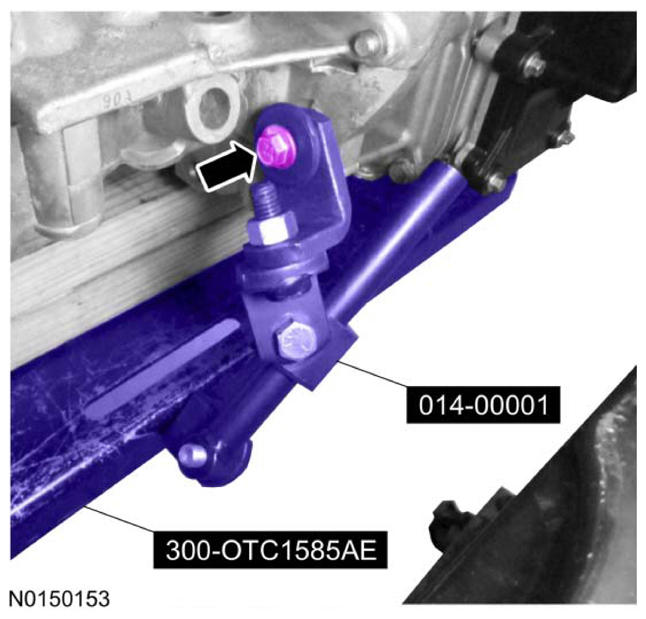

  49. Install the Adjustable Grip Arm from the powertrain lift table to the LH engine-to-transmission bolt hole.
    G09066065
  50. Install a ratchet strap from the front of the subframe under the powertrain lift table to the rear of the subframe, to secure the subframe to the powertrain lift table.
  51. NOTE: LH shown in illustration, RH similar.
    NOTE: The halfshafts are not being remove from the transmission.

    Remove the strut-to-wheel knuckle nuts and bolts.

    • Remove the strut from the wheel knuckle and the halfshafts from the wheel knuckle.
      G09066066
  52. Remove the 4 transmission support insulator bolts.
    G09066067
  53. Remove the 3 nuts, the bolt and the transaxle support insulator assembly.
    G09066068
  54. Remove the 4 engine mount nuts, the 3 engine mount bolts and the engine mount.
    • Lower the engine and transaxle assembly from the vehicle.
      G09066069
  55. NOTE: RH shown in illustration, LH similar.

    Remove the subframe bracket-to-body bolts.

    G09066070
  56. NOTE: RH shown in illustration, LH similar.

    Remove the rear subframe bolts and the subframe brackets.

    G09066071
  57. NOTE: RH shown in illustration, LH similar.

    Remove the front subframe bolts.

    G09066072
  58. Lower the subframe and powertrain assembly from the vehicle.
  59. Install 303-1245 on the LH cylinder head.
    G09066073

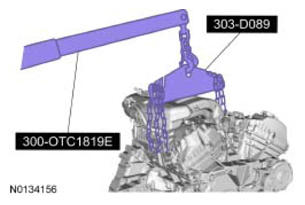

  60. Install the Heavy Duty Floor Crane and Spreader Bar.
    G09066074
  61. Remove the starter motor solenoid cover.
    G09066075
  62. Remove the 2 nuts and the starter motor wiring terminals.
    G09066076
  63. Detach the harness retainer.
    G09066077
  64. Remove the bolt, stud bolt and the starter.
    G09066078
  65. Remove the bolt and the ground wire from the RH cylinder head.
    G09066079
  66. Disconnect the 2 A/C compressor electrical connectors.
    • Detach the A/C wiring harness retainer.
      G09066080
  67. Disconnect the generator electrical connector and position the generator B+ cable cover aside.
    G09066081
  68. Remove the nut and disconnect the generator B+ cable.
    G09066082
  69. Detach the 3 wiring harness retainer from the valve cover stud bolt and position the harness on transmission.
    G09066083
  70. Disconnect the transaxle control electrical connector.
    G09066084
  71. Detach the transaxle control wire harness retainer from the transaxle stud bolt.
    G09066085
  72. Disconnect the RH catalyst monitor electrical connector.
    G09066086
  73. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.
    G09066087
  74. Remove the 4 nuts and the RH catalytic converter heat shield.
    G09066088
  75. Remove the 6 nuts and the RH catalytic converter manifold.
    • Discard the nuts and RH catalytic converter manifold gasket.
      G09066089
  76. Remove and discard the 6 RH catalytic converter manifold studs.
    G09066090
  77. Remove the Adjustable Grip Arm.
    G09066091
  78. Remove the ratchet strap from the front of the subframe under the powertrain lift table to the rear of the subframe.
  79. NOTE: LH shown in illustration, RH similar.

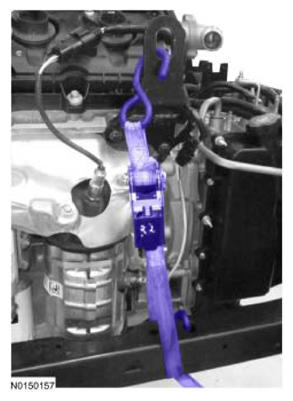

    Install the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

    G09066092
  80. Using the Floor Crane and Spreader Bar, remove the powertrain and subframe as an assembly from the powertrain lift table and set on the ground.
    • Position wood blocks under the engine and transmission.
      G09066093
  81. NOTE: LH shown in illustration, RH similar.

    Remove the ratchet strap from the front subframe to the LH engine lift eye and from the rear of the subframe to the RH engine lift eye.

    G09066094
  82. Remove the 2 intermediate shaft bracket nuts and the 2 studs.
    G09066095
  83. Remove the 2 bolts and the RH halfshaft support bracket.
    G09066096
  84. Remove the 2 engine-to-transaxle bolts.
    G09066097
  85. Remove the 5 transaxle-to-engine bolts.
    • Separate the transaxle from the engine.
      G09066098
  86. Using the Floor Crane and Spreader Bar, remove the engine from the transaxle.
    G09066099
