Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

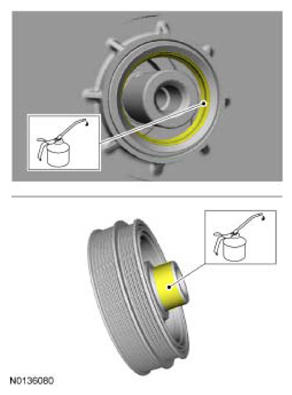

  1. Lubricate the crankshaft front seal inner lip and crankshaft pulley outside diameter sealing surfaces with clean engine oil.
    G09065756
  2. Using 303-102 T74P-6316-B and 303-335 T88T-6701-A, install the crankshaft pulley.
    G09065757
  3. Using 303-D055 D85L-6000-A, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.
      G09065758
  4. Install the accessory drive belt. REFER to ACCESSORY DRIVE BELT - 3.5L TI-VCT, 3.7L TI-VCT .
  5. Install the RH splash shield. REFER to FENDER SPLASH SHIELD .
  6. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
